  13. General Purpose Relay, Square, 21.6 mA, 8 Pins, Plug-in
No Product Image Available

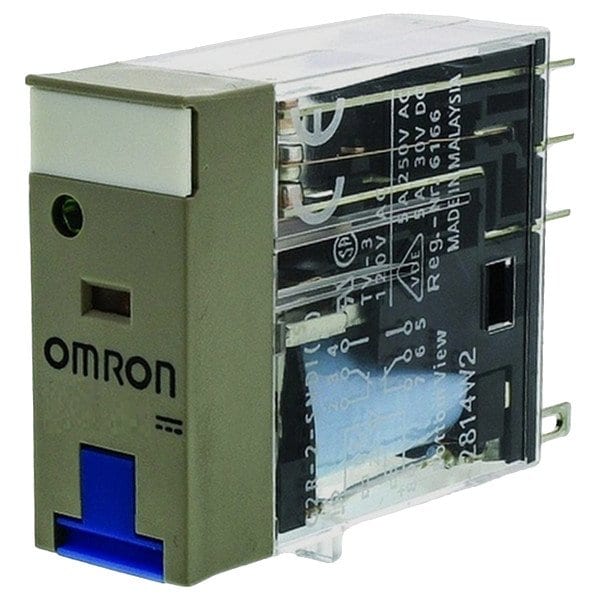

General Purpose Relay, Square, 21.6 mA, 8 Pins, Plug-in

  • Mfr # G2R-2-SNDI DC24(S)

  • Zoro # G410080118

product price: $32.95
/ea

Key Features

Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
8
Coil Voltage
24V DC
Current Rating
21.6 mA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G2R-2-SNDI DC24(S)
Zoro #
G410080118
UPC #
4536854937125
Country of Origin
Malaysia

Dimensions

Body Width
0.51 in
Body Depth
1.39 in
Body Height
1.14 in
Overall Depth
1.64 in
Flat Pin Width
4.75 mm

Details

Item
General Purpose Relay
Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
8
Coil Voltage
24V DC
Current Rating
21.6 mA
Contact Form
DPDT
Contact Rating (AC)
2 A @ 250V, 5 A @ 250V
Contact Rating (DC)
3 A @ 30V, 5 A @ 30V
Standards
CSA 22.2 No.0, CSA 22.2 No.14 (File No.LR31928), IEC/VDE (Certificate No.40015012 EN 61810-1), UL 508 (File No.E41643)
Status Indicator
LED Indicator
Features
Screwless Clamp-Terminal Sockets Available, Space Saving - 16 mm with Socket, Test Button, Momentary and Lockable, Blue for DC, Red for AC Versions
Resistance Properties
Insulation-Resistant, Shock-Resistant, Vibration-Resistant
Power Consumption
0.53 W
Maximum Switching Voltage
125V DC, 380V AC
For Use With
Sockets
Compatible with Manufacturer Model Number
P2R-087P, P2R-08A, P2R-08P, P2RF-08, P2RF-08-E, P2RF-08-PU, P2RFZ-08-E
Electrical Operating Durability
100,000
Minimum Switching Current
5 A
Coil Resistance
1,113 ohm
Insulation Resistance
1,000 megaohm
Response Time
15 msec
Minimum Operating Temperature
-40 Degrees C
Weight
20 g
Series
G2RS
Mechanical Operating Durability
10,000,000, 20,000,000
Dielectric Strength
1,000V AC, 50/60 Hz for 1 min Between Contacts of Same Polarity, 3,000V AC, 50/60 Hz for 1 min Between Contacts of Different Polarity, 5,000V AC, 50/60 Hz for 1 min Between Coil and Contacts
Frequency
50/60 Hz
Maximum Operating Temperature
70 Degrees C
Compatible Manufacturer Part Number
P2R-087P, P2R-08A, P2R-08P, P2RF-08, P2RF-08-E, P2RF-08-PU, P2RFZ-08-E
Compatible Manufacturer Model Number
P2R-087P, P2R-08A, P2R-08P, P2RF-08, P2RF-08-E, P2RF-08-PU, P2RFZ-08-E
Push-To-Test Method
Manual Push Test Button

Description

General Purpose Relays, Base Shape Square, Coil Voltage 24V DC, Contact Form DPDT, Electrical Connection Plug-In, Flat Pin Width 4.75 mm, Number of Pins 8, Status Indicator LED Indicator, Contact Rating (AC) 2 A @ 250V, 5 A @ 250V, Contact Rating (DC) 3 A @ 30V, 5 A @ 30V, Push-To-Test Method Test Button, Body Depth 1.39 in, Body Height 1.14 in, Body Width 0.51 in, Coil Resistance 1,113 ohm
