  13. General Purpose Relay, Square, 8.2 mA, 9.5 mA, 8 Pins, Plug-in
No Product Image Available

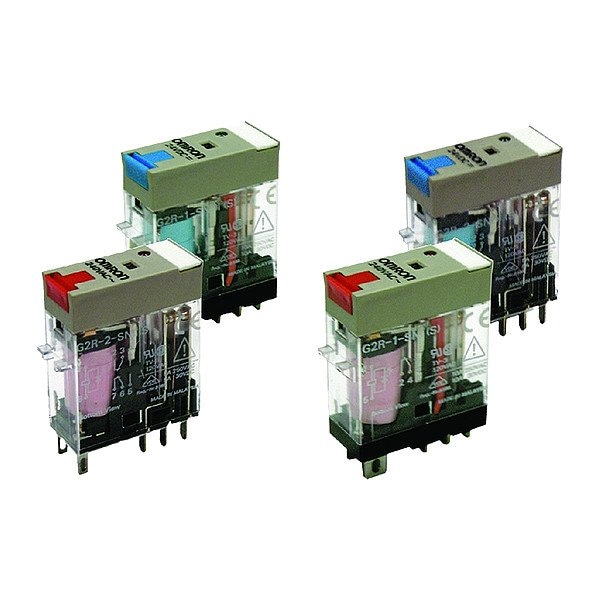

General Purpose Relay, Square, 8.2 mA, 9.5 mA, 8 Pins, Plug-in

  • Mfr # G2R-2-SN AC110(S)

  • Zoro # G010080150

product price: $30.89
/ea

Key Features

Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
8
Coil Voltage
110V AC
Current Rating
8.2 mA, 9.5 mA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G2R-2-SN AC110(S)
Zoro #
G010080150
UPC #
4536854936883
Country of Origin
Malaysia

Dimensions

Flat Pin Width
4.75 mm
Body Height
1.14 in
Body Width
0.51 in
Body Depth
1.39 in
Overall Depth
1.64 in

Details

Item
General Purpose Relay
Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
8
Coil Voltage
110V AC
Current Rating
8.2 mA, 9.5 mA
Contact Form
DPDT
Contact Rating (AC)
2 A @ 250V, 5 A @ 250V
Contact Rating (DC)
2 A @ 30V, 5 A @ 30V
Features
Screwless Clamp-Terminal Sockets Available, Space Saving - 16 mm with Socket, Test Button, Momentary and Lockable, Blue for DC, Red for AC Versions
Standards
CSA 22.2 No.0, CSA 22.2 No.14 (File No.LR31928), IEC/VDE (Certificate No.40015012 EN 61810-1), UL 508 (File No.E41643)
Status Indicator
LED Indicator
Mechanical Operating Durability
10,000,000, 20,000,000
Maximum Switching Voltage
125V DC, 380V AC
Series
G2RS
Weight
20 g
Minimum Switching Current
5 A
Coil Resistance
5,566 ohm
Response Time
15 msec
Dielectric Strength
1,000V AC, 50/60 Hz for 1 min Between Contacts of Same Polarity, 3,000V AC, 50/60 Hz for 1 min Between Contacts of Different Polarity, 5,000V AC, 50/60 Hz for 1 min Between Coil and Contacts
Resistance Properties
Insulation-Resistant, Shock-Resistant, Vibration-Resistant
Maximum Operating Temperature
70 Degrees C
Compatible with Manufacturer Model Number
P2R-087P, P2R-08A, P2R-08P, P2RF-08, P2RF-08-E, P2RF-08-PU, P2RFZ-08-E
Frequency
50/60 Hz
Power Consumption
0.9 VA
Electrical Operating Durability
100,000
For Use With
Sockets
Insulation Resistance
1,000 megaohm
Minimum Operating Temperature
-40 Degrees C
Compatible Manufacturer Part Number
P2R-087P, P2R-08A, P2R-08P, P2RF-08, P2RF-08-E, P2RF-08-PU, P2RFZ-08-E
Compatible Manufacturer Model Number
P2R-087P, P2R-08A, P2R-08P, P2RF-08, P2RF-08-E, P2RF-08-PU, P2RFZ-08-E

Description

General Purpose Relays, Base Shape Square, Coil Voltage 110V AC, Contact Form DPDT, Electrical Connection Plug-In, Flat Pin Width 4.75 mm, Number of Pins 8, Status Indicator LED Indicator, Contact Rating (AC) 2 A @ 250V, 5 A @ 250V, Contact Rating (DC) 2 A @ 30V, 5 A @ 30V, Body Depth 1.39 in, Body Height 1.14 in, Body Width 0.51 in, Coil Resistance 5,566 ohm, Compatible with Manufacturer Model Number P2R-087P, P2R-08A, P2R-08P, P2RF-08, P2RF-08-E, P2RF-08-PU, P2RFZ-08-E
