Shop OMRON

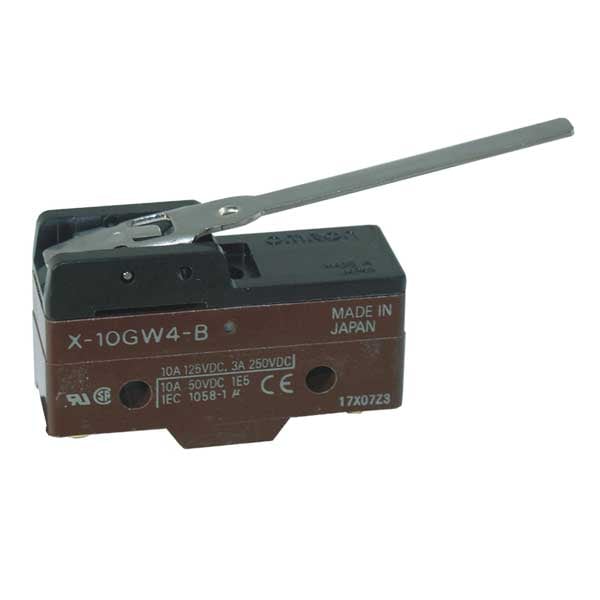

Industrial Snap Action Switch, Hinge, Lever Actuator, SPDT

  • Mfr # X-10GW4-B

  • Zoro # G1346353

product price:
$
22.75
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
2.5 in
Height - Snap Action Switch
1.16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
X-10GW4-B
Zoro #
G1346353
UPC #
-
Country of Origin
Japan
Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Differential Travel
0.154 in
Operating Temp. Range
-13 Degrees to 176 Degrees F
Contact Form
1NO/1NC
Standards
CE, CSA, RU
Type of Actuator
Hinge Lever
Electrical Connection - Snap Action Switch
Screw
Max. Pretravel
0.563 in
Current Rating
10A
Watertight - Snap Action Switch
No
Release Force
0.18 ozf
Terminal Type
Screw
Series
X
Operating Force
0.88 oz
Voltage Rating
125VDC
Housing Material
Phenolic
Over Travel
0.19 in
Includes
Stainless-Steel Actuator
DC Contact Rating
10 A @ 120 V
AC Contact Rating
2 A @250 V
Operating Temperature - Maximum
176 Degrees F
Center Mounting Hole Distance
1 in
Operating Temperature - Minimum
-13 Degrees F
Electrical Connection
Screw Terminal
Roller Adjustability
Fixed
Overtravel
0.189 in
Operating Force - Minimum
0.25 N
Operating Force - Maximum
0.25 N
Actuator Style
Lever
Body Material
Phenolic
Differential Travel - Maximum
0.1535 in
Pretravel
0.563 in
Mounting Hole Horizontal Center to Center Distance
1 in

Description

Snap Action Switch, Hinge, Lever, DC Contact Rating - Snap Action Switch 10 A @ 120 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 2.5 in, Height - Snap Action Switch 1.16 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series X
