  13. Industrial Snap Action Switch, Hinge, Lever, Short Actuator, SPDT

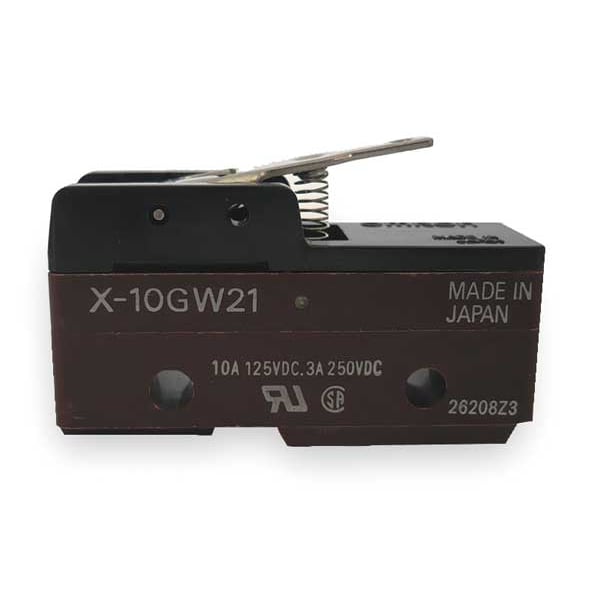

Omron Industrial Snap Action Switch, Hinge, Lever, Short Actuator, SPDT X-10GW21 - main

Industrial Snap Action Switch, Hinge, Lever, Short Actuator, SPDT

  • Mfr # X-10GW21

  • Zoro # G2626836

product price: $16.85
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever, Short
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.11 in
Height - Snap Action Switch
1.05 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
X-10GW21
Zoro #
G2626836
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
1.11 in
Height - Snap Action Switch
1.05 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Mounting Dimension
1.00" Centers
Height
1.05"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Depth
0.69"
Length
1.94"
Actuator Length
1.11"
Overall Height
1.05 in
Mounting Hole Diameter
3/16 in
Overall Depth
0.69 in
Overall Width
1.94 in
Body Width
1.94 in
Body Depth
0.69 in
Lever Actuator Length
1.11 in
Body Height
1.05 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever, Short
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Operating Temp. Range
-13 Degrees to 176 Degrees F
Over Travel
0.08 in
Electrical Connection - Snap Action Switch
Solder Lug
Housing Material
Phenolic
Differential Travel
0.067 in
Voltage Rating
125VDC
Max. Pretravel
0.221 in
Series
X
Watertight - Snap Action Switch
No
Current Rating
10A
Terminal Type
Solder
Type of Actuator
Short Hinge Lever
Release Force
1.12 ozf
Standards
CE, CSA, RU
Contact Form
1NO/1NC
Operating Force
8.83 oz
Includes
Stainless-Steel Actuator
AC Contact Rating
2 A @250 V
DC Contact Rating
10 A @ 120 V
Actuator Style
Hinge Lever
Center Mounting Hole Distance
1 in
Overtravel
0.082 in
Differential Travel - Maximum
0.0669 in
Operating Force - Maximum
2.45 N
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Minimum
2.45 N
Body Material
Phenolic
Operating Temperature - Maximum
176 Degrees F
Roller Adjustability
Fixed
Pretravel
0.221 in
Electrical Connection
Solder

Description

Snap Action Switch, Hinge, Lever, Short, DC Contact Rating - Snap Action Switch 10 A @ 120 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.11 in, Height - Snap Action Switch 1.05 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series X
