  13. Industrial Snap Action Switch, Hinge Roller, Lever, Short Actuator, SPDT

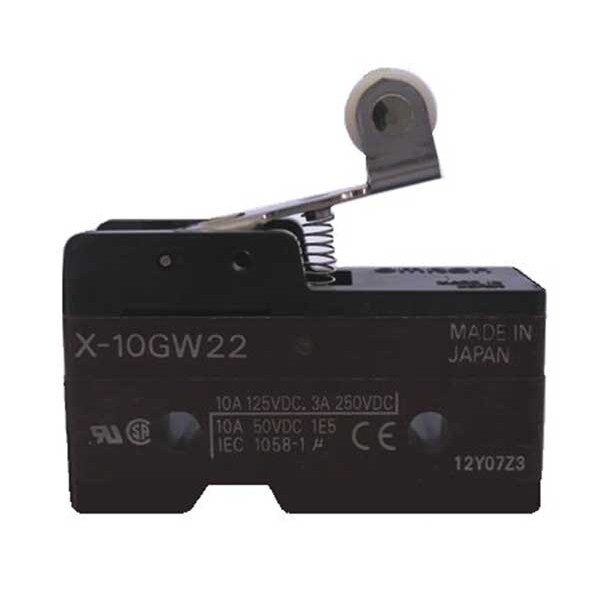

Omron Industrial Snap Action Switch, Hinge Roller, Lever, Short Actuator, SPDT X-10GW22 - main

Industrial Snap Action Switch, Hinge Roller, Lever, Short Actuator, SPDT

  • Mfr # X-10GW22

  • Zoro # G1811975

product price: $17.59
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge Roller, Lever, Short
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.05 in
Height - Snap Action Switch
1.05 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
X-10GW22
Zoro #
G1811975
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
1.05 in
Height - Snap Action Switch
1.05 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Length
1.94"
Actuator Length
1.05"
Depth
0.69"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Mounting Dimension
1.00" Centers
Height
1.05"
Overall Height
0.69 in
Mounting Hole Diameter
3/16 in
Lever Actuator Length
1.05 in
Overall Depth
1.71 in
Body Height
0.69 in
Roller Diameter
0.37 in
Overall Width
1.94 in
Roller Width
0.16 in
Body Depth
1.71 in
Body Width
1.94 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever, Short
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Release Force
1.22 ozf
Series
X
Housing Material
Phenolic
Operating Temp. Range
-13 Degrees to 176 Degrees F
Watertight - Snap Action Switch
No
Electrical Connection - Snap Action Switch
Solder Lug
Standards
CE, CSA, RU
Current Rating
10A
Operating Force
7.77 oz
Max. Pretravel
0.225 in
Over Travel
0.09 in
Terminal Type
Solder
Voltage Rating
125VDC
Differential Travel
0.067 in
Contact Form
1NO/1NC
Type of Actuator
Short Hinge Roller Lever
Includes
Stainless-Steel Actuator
AC Contact Rating
2 A @250 V
DC Contact Rating
10 A @ 125 V
Operating Temperature - Maximum
176 Degrees F
Roller Position
Offset
Operating Force - Minimum
2.16 N
Center Mounting Hole Distance
1 in
Actuator Style
Hinge Roller Lever
Overtravel
0.094 in
Electrical Connection
Solder
Roller Adjustability
Fixed
Operating Force - Maximum
2.16 N
Roller Material
Plastic
Body Material
Phenolic
Operating Temperature - Minimum
-13 Degrees F
Pretravel
0.225 in
Differential Travel - Maximum
0.0669 in

Description

Snap Action Switch, Hinge Roller, Lever, Short, DC Contact Rating - Snap Action Switch 10 A @ 120 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.05 in, Height - Snap Action Switch 1.05 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series X
