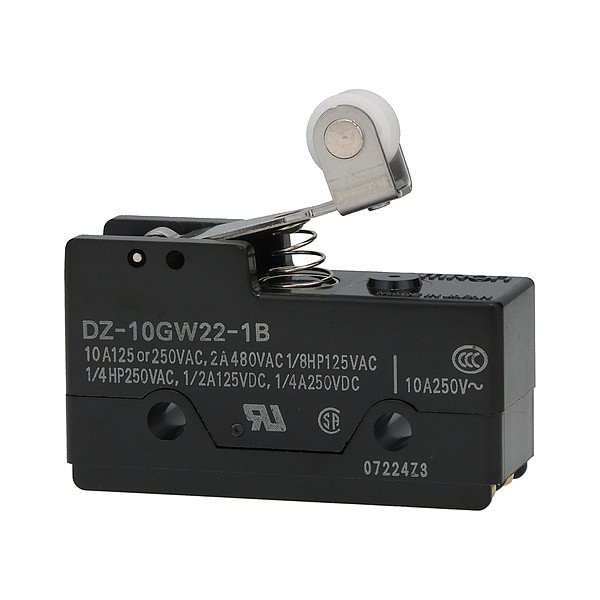

Limit Switch Arms and Actuator
Mfr # DZ-10GW22-1B
Zoro # G616560995
product price:Â $72.55
/eaKey Features
Actuator Style
Roller Lever
Electrical Connection
Solder Lug
Mounting Hole Horizontal Center to Center Distance
1 in
Release Force
2.99 ozf
Body Material
Plastic
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
DZ-10GW22-1B
Zoro #
G616560995
UPC #
4536853182052
Country of Origin
United States
Dimensions
Mounting Hole Diameter
3/16 in
Roller Width
0.16 in
Roller Diameter
0.37 in
Lever Actuator Length
4 mm
Details
Item
Limit Switch Arms and Actuator
Actuator Style
Roller Lever
Electrical Connection
Solder Lug
Mounting Hole Horizontal Center to Center Distance
1 in
Release Force
2.99 ozf
Body Material
Plastic
Series
DZ series
DC Contact Rating
0.03 A @ 250 V, 0.05 A @ 125 V, 4 A @ 30 V, 6 A @ 14 V, 6 A @ 8 V
Contact Form
2NO/2NC
Roller Position
Top
Differential Travel - Maximum
2.4 mm
Roller Adjustability
Fixed
Operating Force - Maximum
3.92 N
Operating Force - Minimum
0.83 N
AC Contact Rating
4 A @ 250 V, 6 A @ 125 V
Roller Material
Plastic
Description
Limit Switch Arms and Actuator, Series DZ series
