Omron

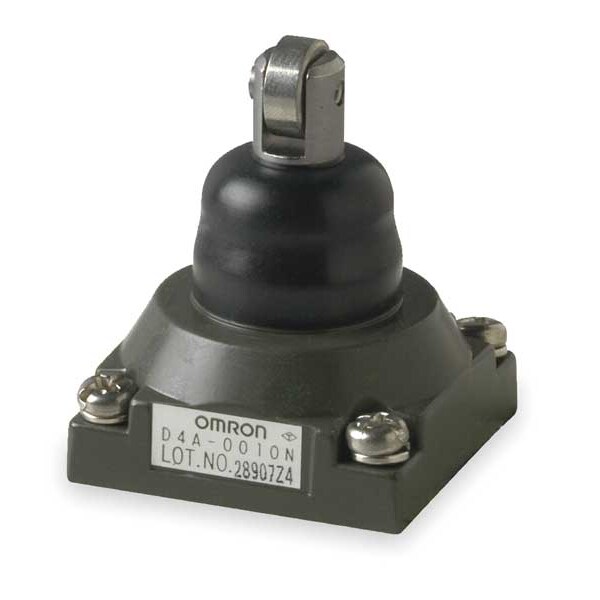

Limit Switch Head Roller Plunger Nema 3, 4, 4X, 6P, 12, 13

product price: $110.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Actuator Style Push Roller Plunger
  • Actuator Location Top
  • Contact Form Not Specified
  • For Use With D4A2510N, Mfr. No. D4A1110N
  • NEMA Rating 12, 13, 3, 4, 4X, 6P
See all product information

Product Information

Dimensions

Arm Width 0.43 in
Arm Depth 0.06 in

Details

Item Limit Switch Head
Actuator Style Push Roller Plunger
Actuator Location Top
Contact Form Not Specified
For Use With D4A2510N, Mfr. No. D4A1110N
NEMA Rating 12, 13, 3, 4, 4X, 6P
Movement Top
Travel Not Specified
Voltage Rating Not Specified
Amps Not Specified
Operating Temp. -40 Degrees to 212 Degrees F
IP Rating IP67
Description/Special Features Not Specified
Standards CSA, UL Listed
Operating Force 17.65 N
Series D4A
Arm Material Stainless Steel
Differential Travel 0.02 in
Plunger Adjustability Fixed
Compatible with Series D4A
Compatible with Manufacturer Model Number D4A1110N, D4A2510N
Overtravel 0.2 in
NEMA Enclosure Rating 1, 12, 13, 2, 3, 4X, 5, 6P
Action Maintained
Directional Movement Linear
Arm Adjustability Fixed
Operating Temperature - Minimum -40 Degrees F
Operating Torque 52.04 in-lb
Operating Temperature - Maximum 212 Degrees F

Description

Limit Switch Head, Actuator Style Push Roller Plunger, Actuator Location Top, Contact Form Not Specified, Amps Not Specified, Voltage Rating Not Specified, Travel Not Specified, Movement Top, Operating Force 17.65 N, Operating Temp. -40 Degrees to 212 Degrees F, NEMA Rating 12, 13, 3, 4, 4X, 6P, IP Rating IP67, Standards CSA, UL Listed, For Use With D4A2510N, Mfr. No. D4A1110N
