  13. Lmt Swtch Head, Roller Lever, Side, 2.32 In

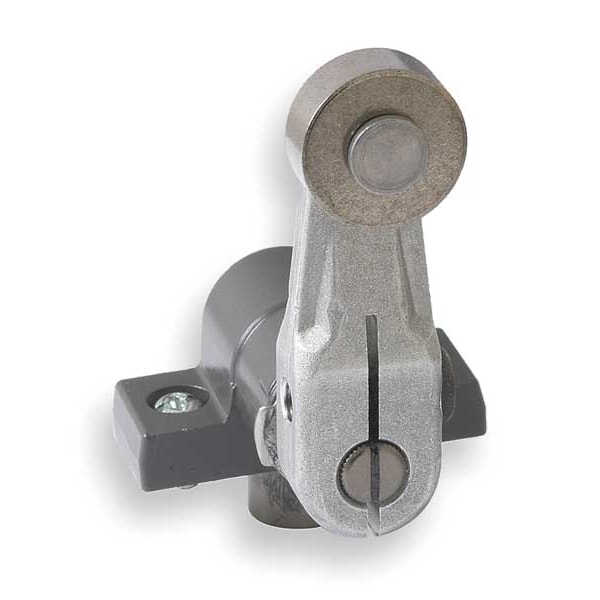

Omron Lmt Swtch Head, Roller Lever, Side, 2.32 In D4C0020 - main

Lmt Swtch Head, Roller Lever, Side, 2.32 In

  • Mfr # D4C0020

  • Zoro # G3363053

product price: $83.39
/ea
Free Shipping & Returns

Key Features

For Use With
D4C1720, Mfr. No. D4C1620
Amps
Not Specified
Description/Special Features
Not Specified
IP Rating
IP67
Actuator Length
2.32 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
D4C0020
Zoro #
G3363053
UPC #
-
Country of Origin
Japan

Dimensions

Actuator Length
2.32 in
Arm Depth
1.15 in
Arm Width
0.69 in
Overall Depth
1.93 in
Overall Height
3.27 in
Arm Length - Maximum
2.32 in
Overall Width
1.57 in

Details

Item
Limit Switch Head
For Use With
D4C1720, Mfr. No. D4C1620
Amps
Not Specified
Description/Special Features
Not Specified
IP Rating
IP67
Voltage Rating
Not Specified
Travel
Not Specified
Operating Force
5.69 N
Movement
Left and Right
Actuator Location
Side
NEMA Rating
1, 12, 13, 3, 3R, 4, 5, 6
Operating Temp.
-14 Degrees to 158 Degrees F
Contact Form
Not Specified
Actuator Style
Roller Lever Plunger
Standards
CCC, CSA, EN, UL Listed
Features
Sealed Cable Entrance, Multiple Mounting Possible, Sealed Switch Section
Arm Material
Stainless Steel
Series
D4C
Overtravel
40 Degrees
NEMA Enclosure Rating
1, 12, 13, 3, 3R, 4, 5, 6
Plunger Adjustability
Fixed
Compatible with Series
D4C
Directional Movement
Linear
Operating Torque
52.04 in-lb
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
14 Degrees F
Pretravel
25 Degrees
Differential Travel
3 Degrees
Compatible with Manufacturer Model Number
D4C1620, D4C1720
Arm Adjustability
Fixed
Compatible Manufacturer Part Number
D4C1620, D4C1720
Compatible Manufacturer Model Number
D4C1620, D4C1720
Compatible with Manufacturer Model No.
D4C1620, D4C1720
Compatible with Mfr. Model No.
D4C1620, D4C1720
For Use with Mfr Model Number
D4C1620, D4C1720
For Use With Mfr. Model Number
D4C1620, D4C1720
Compatible Pump Manufacturer Part Number
D4C1620, D4C1720
Compatible Mfr. Model Number
D4C1620, D4C1720

Description

Limit Switch Head, Actuator Style Roller Lever Plunger, Actuator Location Side, Actuator Length 2.32 in, Contact Form Not Specified, Amps Not Specified, Voltage Rating Not Specified, Travel Not Specified, Movement Left and Right, Operating Force 5.69 N, Operating Temp. -14 Degrees to 158 Degrees F, NEMA Rating 1, 12, 13, 3, 3R, 4, 5, 6, IP Rating IP67, Standards CCC, CSA, EN, UL Listed, For Use With D4C1720, Mfr. No. D4C1620
