  11. Miniature Sealed Snap Action Switch, Hinge, Lever Actuator, SPDT, 3A @ 240V AC Contact Rating

This item is Discontinued.

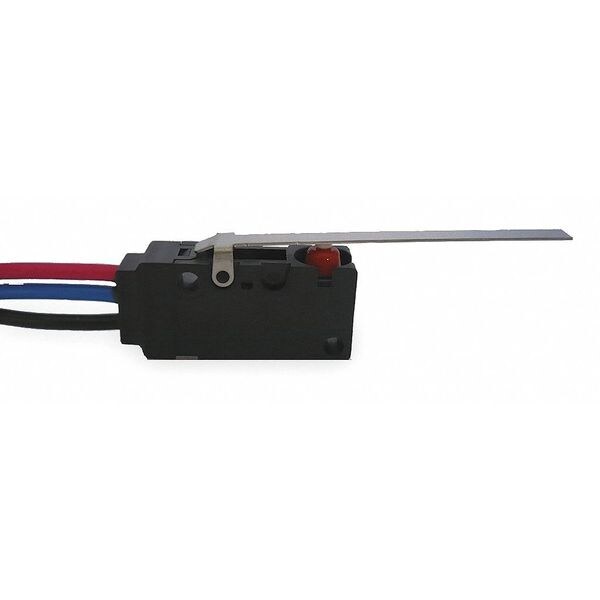

Omron Miniature Sealed Snap Action Switch, Hinge, Lever Actuator, SPDT, 3A @ 240V AC Contact Rating D2VW-5L1B-1MS

Miniature Sealed Snap Action Switch, Hinge, Lever Actuator, SPDT, 3A @ 240V AC Contact Rating (Discontinued)

  • Mfr # D2VW-5L1B-1MS
  • Zoro # G0410776
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D2VW-5L1B-1MS
Zoro #
G0410776
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
2.34 in
Height - Snap Action Switch
0.63 in
Width - Snap Action Switch
1.30 in
Depth - Snap Action Switch
0.41 in
Mounting Dimension - Snap Action Switch
0.87 in Centers
Depth
0.41"
Mounting Dimension
0.41 x 0.87" Centers
Actuator Length
2.34"
Length
1.30"
Height
0.63"

Details

Item
Sealed Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
3A @ 240V
Contact Form- Switches
SPDT
Differential Travel
0.079 in
Series
D2VW
Standards
CSA, EN 61058-1, IEC 1058-1, UL Listed
Max. Pretravel
0.355 in
Terminal Type
Lead Wires
Electrical Connection - Snap Action Switch
Lead Wires
Contact Form
SPDT
Current Rating
3A
Operating Force
2.12 oz
Housing Material
Phenolic
Type of Actuator
Long Hinge Lever
Over Travel
0.126 in
Operating Temp. Range
-40 Degrees to 194 Degrees F
Watertight - Snap Action Switch
Yes
Release Force
0.18 oz
Voltage Rating
125/250VAC
AC Contact Rating
3 A @ 240 V
Pretravel
0.355 in
Overtravel
0.126 in
Electrical Connection
Lead Wires
Differential Travel - Maximum
0.079 in
Actuator Style
Hinge Lever

Description

Sealed Snap Action Switch, Hinge, Lever, AC Contact Rating - Snap Action Switch 3A @ 240V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 2.34 in, Height - Snap Action Switch 0.63 in, Width - Snap Action Switch 1.30 in, Depth - Snap Action Switch 0.41 in, Electrical Connection - Snap Action Switch Lead Wires, Mounting Dimension - Snap Action Switch 0.87 in Centers, Series D2VW
