Contact our U.S. based teamSpecifications
Product Information
MFR #
E3A2-DS70M4T
Zoro #
G2143145
UPC #
-
Country of Origin
China
Dimensions
Width
57mm
Depth
89mm
Length
75.3mm
Details
Item

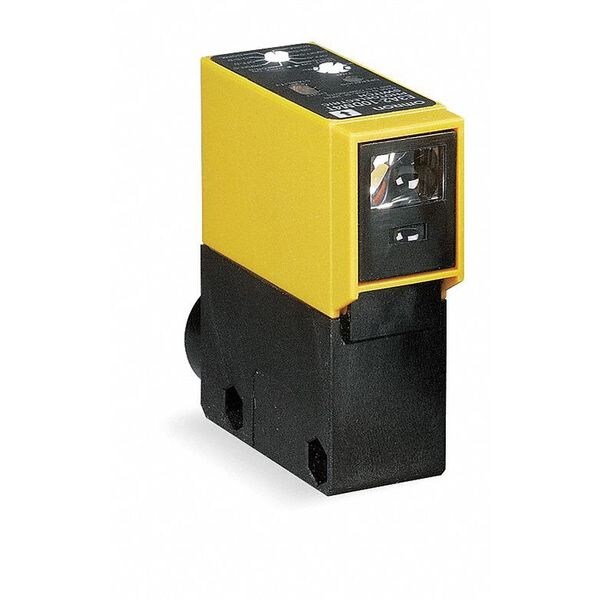

Photoelectric Sensor
Circuit Type
SPDT
IP Rating
IP66
Max. Load Current
200mA
Electrical Connection
Screw Terminal
Shape
Rectangular
Response Time
15 msec
Standards
UL Listed
Sensing Method
Diffuse Reflective
Features
Power Supply Reverse Polarity Protection
Power Requirement
24 to 240VAC/12 to 240VDC
Max. Sensing Distance
2.25 ft.
NEMA Rating
1, 4, 4X, 12
Body Material
Plastic
Operation Mode
Selectable Light or Dark On
Footnotes
3,6,7,9
Operating Temp. Range
-25 Degrees to 55 Degrees C
Light Source
Infrared LED
NEMA Enclosure Rating
1, 12, 4, 4X
Product Type
Photoelectric Sensor
Emitted Sensor Light
Infrared
Description
Photoelectric Sensor
