  13. Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Plug-in

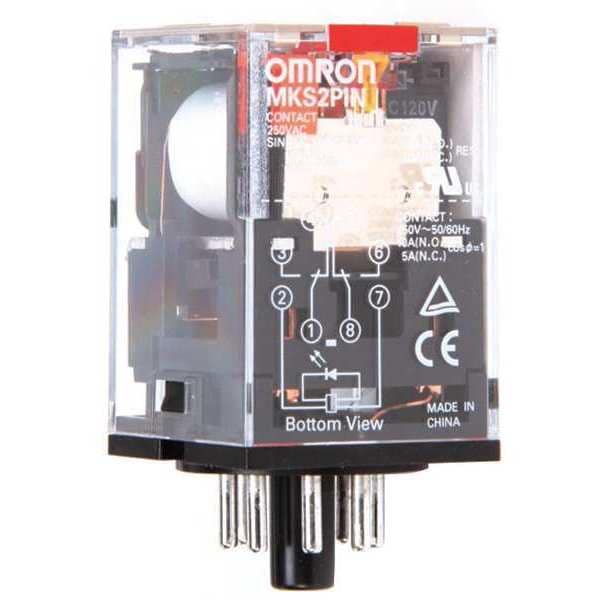

Omron Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Plug-in MKS2PINAC120 - main

CAD Viewer & Download Files

Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Plug-in

  • Mfr # MKS2PINAC120

  • Zoro # G1291604

CAD Available
product price: $17.65
/ea

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Plug-in
Base Shape
Octal
Number of Pins
8
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MKS2PINAC120
Zoro #
G1291604
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.5 in
Body Height
1.36 in
Overall Depth
2.5 in
Body Depth
2.07 in
Body Width
1.36 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Plug-in
Base Shape
Octal
Number of Pins
8
Coil Voltage
120V AC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 250V, 5 A @ 250V, 7 A @ 250V
Contact Rating (DC)
10 A @ 30V (NO), 5 A @ 30V (NC)
HP @ 120V
Not Rated
Socket Code
A
Standards
RoHS Compliant, UL and IEC (TUV) Certified
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket
Mfr. No. PF083A-E
Status Indicator
LED and Mechanical Flag
HP @ 240V
Not Rated
Power Consumption - Relay
2.3 VA
Features
Diode Surge Supression, Varistor Surge Suppression
Contact Material
Silver Tin Indium
Compatible with Manufacturer Model Number
PF083A, PF083A-D, PF083A-E
Power Consumption
2.3 VA, 2.7 VA
Weight
3.17 oz
Mechanical Operating Durability
5,000,000
Input Voltage
120V AC
Horsepower @ 240V AC
Not Rated
Push-To-Test Method
Lockable Push Test Button
Maximum Operating Temperature
140 Degrees F
Maximum Switching Voltage
250V AC, 250V DC
Coil Resistance
1,130 ohm
Electrical Operating Durability
100,000
Dielectric Strength
1,000V AC Between Contacts of Same Polarity and Terminals of the Same Polarity, 2,500V AC between Coil and Contacts, 2,500V AC Between Current-Carrying Parts Non-Current-Carrying Parts and Opposite Polarity
Resistance Properties
Shock-Resistant, Vibration-Resistant
Series
MK-S Series
Sealing
Enclosed
Horsepower @ 120V AC
Not Rated
Response Time
30 msec
Minimum Operating Temperature
-13 Degrees F
Operating Current
10 A at 250V AC (Resistive Load), 10 A at 30V DC (Resistive Load), 5 A at 250V AC (Resistive Load), 5 A at 30V DC (Resistive Load), 7 A at 250V AC (Inductive Load)
Motor Rated
Not Rated - Not Rated
Frequency
50/60 Hz
Pin Shape
Round
Insulation Resistance
100 megaohm
Compatible Manufacturer Part Number
PF083A, PF083A-D, PF083A-E
Compatible Manufacturer Model Number
PF083A, PF083A-D, PF083A-E
CAD Available
Yes

Description

General Purpose Relay, Base Shape Octal, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Plug-In, Flat Pin Width Not Applicable, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 250V (NO), 5 A @ 250V (NC), 7 A @ 250V (NO), Contact Rating (DC) 10 A @ 30V (NO), 5 A @ 30V (NC), Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In
