  13. Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Plug-in

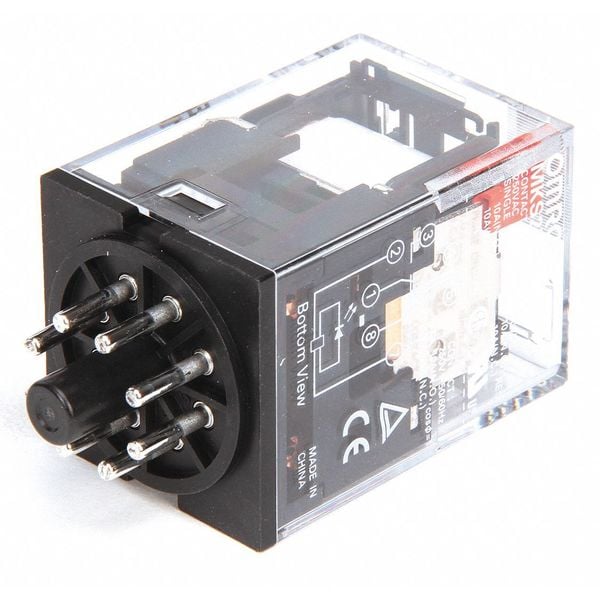

Omron Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Plug-in MKS2PNAC120 - main

CAD Drawings

Download CAD Files

Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Plug-in

  • Mfr # MKS2PNAC120

  • Zoro # G2106964

CAD Available
product price: $20.45
/ea

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Plug-in
Base Shape
Octal
Number of Pins
8
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MKS2PNAC120
Zoro #
G2106964
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.5 in
Body Width
1.36 in
Overall Depth
2.5 in
Body Height
1.36 in
Body Depth
2.07 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Plug-in
Base Shape
Octal
Number of Pins
8
Coil Voltage
120V AC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 250V, 5 A @ 250V, 7 A @ 250V
Contact Rating (DC)
10 A @ 30V (NO), 5 A @ 30V (NC)
Contact Material
Silver Tin Indium
HP @ 240V
Not Rated
Socket
Mfr. No. PF083A-E
Status Indicator
LED and Mechanical Flag
HP @ 120V
Not Rated
Power Consumption - Relay
2.3 VA
Socket Code
A
Standards
RoHS Compliant, UL and IEC (TUV) Certified
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Input Voltage
120V AC
Pin Shape
Round
Minimum Operating Temperature
-13 Degrees F
Response Time
30 msec
Weight
3.17 oz
Frequency
50/60 Hz
Power Consumption
2.3 VA, 2.7 VA
Maximum Switching Voltage
250V AC, 250V DC
Maximum Operating Temperature
140 Degrees F
Horsepower @ 120V AC
Not Rated
Insulation Resistance
100 megaohm
Dielectric Strength
1,000V AC Between Contacts of Same Polarity and Terminals of the Same Polarity, 2,500V AC between Coil and Contacts, 2,500V AC Between Current-Carrying Parts Non-Current-Carrying Parts and Opposite Polarity
Motor Rated
Not Rated - Not Rated
Push-To-Test Method
No Test Button
Electrical Operating Durability
100,000
Mechanical Operating Durability
5,000,000
Coil Resistance
1,130 ohm
Operating Current
10 A at 250V AC (Resistive Load), 10 A at 30V DC (Resistive Load), 5 A at 250V AC (Resistive Load), 5 A at 30V DC (Resistive Load), 7 A at 250V AC (Inductive Load)
Compatible with Manufacturer Model Number
PF083A, PF083A-D, PF083A-E
Sealing
Enclosed
Series
MK-S Series
Horsepower @ 240V AC
Not Rated
Resistance Properties
Shock-Resistant, Vibration-Resistant
Compatible Manufacturer Part Number
PF083A, PF083A-D, PF083A-E
Compatible Manufacturer Model Number
PF083A, PF083A-D, PF083A-E
CAD Available
Yes

Description

General Purpose Relay, Base Shape Octal, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Plug-In, Flat Pin Width Not Applicable, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 250V (NO), 5 A @ 250V (NC), 7 A @ 250V (NO), Contact Rating (DC) 10 A @ 30V (NO), 5 A @ 30V (NC), Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In
