  13. Plug-In, General Purpose Relay, Square, 5 A, 14 Pins, Plug-in

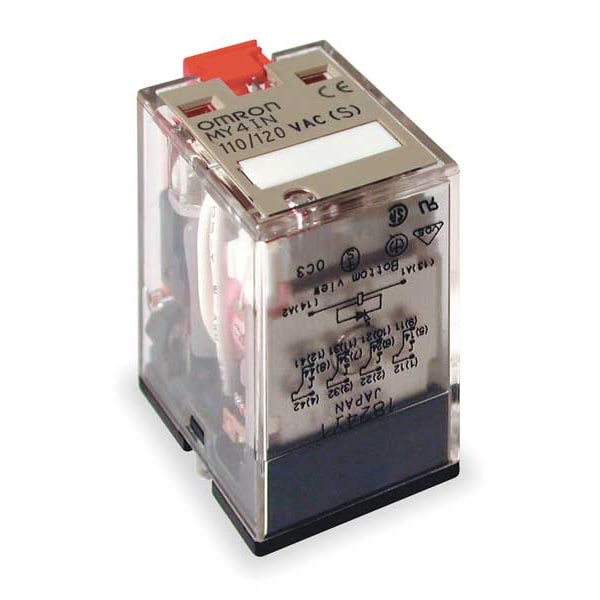

Omron Plug-In, General Purpose Relay, Square, 5 A, 14 Pins, Plug-in MY4IN-AC110/120(S) - main

CAD Viewer & Download Files

Plug-In, General Purpose Relay, Square, 5 A, 14 Pins, Plug-in

  • Mfr # MY4IN-AC110/120(S)

  • Zoro # G1126307

CAD Available
product price: $14.45
/ea
Sold in multiples of 2 for $28.90

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
14
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MY4IN-AC110/120(S)
Zoro #
G1126307
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height - Relay
1.67 in
Overall Depth
1.67 in
Body Height
1.1 in
Body Depth
1.42 in
Body Width
0.85 in
Flat Pin Width
0.102 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
14
Coil Voltage
120V AC
Current Rating
5 A
Contact Form
4PDT
Contact Rating (AC)
5 A @ 240V
Contact Rating (DC)
5 A @ 28V
Socket Code
G
HP @ 240V
1/6 hp
Status Indicator
LED Indicator
Power Consumption - Relay
1.1 VA
Contact Material
Silver Alloy
Socket
Mfr. No. PYF14AE
HP @ 120V
1/6 hp
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Features
Cadmium Free Contacts
Standards
CE Certified, CSA Certified, IMQ, UL Listed, VDE Approved
Maximum Switching Voltage
125V DC, 250V AC
Compatible with Manufacturer Model Number
PY14, PY14-02, PY14-Y1, PYF14A-E, PYF14A-N, PYF14S, PYFZ-14-E
Horsepower @ 120V AC
1/6 hp
Power Consumption
0.9 VA, 1.1 VA
Minimum Operating Temperature
-67 Degrees F
Series
MY Series
Input Voltage
120V AC
Sealing
Enclosed
Horsepower @ 240V AC
1/6 hp
Motor Rated
Yes
Weight
1.23 oz
Response Time
20 msec
Push-To-Test Method
Lockable Push Test Button
Pin Shape
Round
Maximum Operating Temperature
140 Degrees F
Coil Resistance
4,430 ohm
Compatible Manufacturer Part Number
PY14, PY14-02, PY14-Y1, PYF14A-E, PYF14A-N, PYF14S, PYFZ-14-E
Compatible Manufacturer Model Number
PY14, PY14-02, PY14-Y1, PYF14A-E, PYF14A-N, PYF14S, PYFZ-14-E
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 4PDT, Current Rating 5 A, Electrical Connection Plug-In, Flat Pin Width 0.102 in, Number of Pins 14, Pin Shape Round, Sealing Enclosed, Status Indicator LED Indicator, Contact Rating (AC) 5 A @ 240V, Contact Rating (DC) 5 A @ 28V, Horsepower @ 120V AC 1/6 hp, Horsepower @ 240V AC 1/6 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.42 in, Body Height 1.1 in, Body Width 0.85 in
