  13. Plug-In, General Purpose Relay, Square, 5 A, 14 Pins, Plug-in

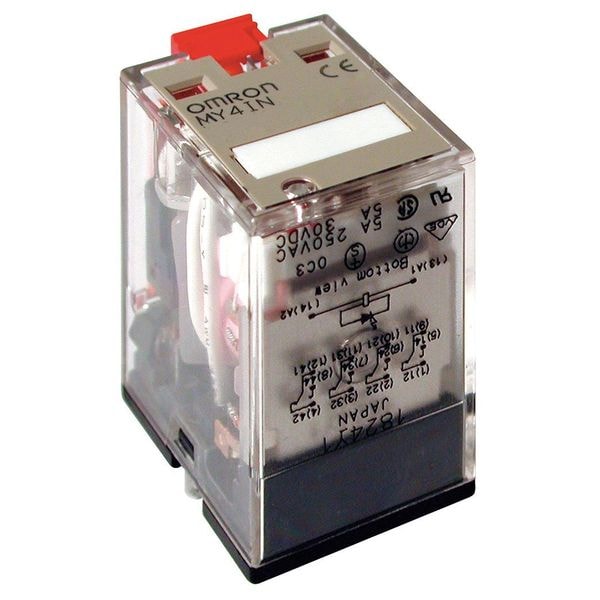

Omron Plug-In, General Purpose Relay, Square, 5 A, 14 Pins, Plug-in MY4IN-AC24(S) - main

CAD Drawings

Download CAD Files

Plug-In, General Purpose Relay, Square, 5 A, 14 Pins, Plug-in

  • Mfr # MY4IN-AC24(S)

  • Zoro # G3409506

CAD Available
product price: $10.99
/ea
Sold in multiples of 2 for $21.98

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
14
Coil Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MY4IN-AC24(S)
Zoro #
G3409506
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height - Relay
1.67 in
Flat Pin Width
0.102 in
Body Height
1.1 in
Body Depth
1.42 in
Overall Depth
1.67 in
Body Width
0.85 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
14
Coil Voltage
24V AC
Current Rating
5 A
Contact Form
4PDT
Contact Rating (AC)
5 A @ 240V
Contact Rating (DC)
5 A @ 28V
Socket
Mfr. No. PYF14AE
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket Code
G
Status Indicator
LED Indicator
HP @ 120V
1/6 hp
Contact Material
Silver Alloy
Power Consumption - Relay
1.1 VA
HP @ 240V
1/6 hp
Features
Cadmium Free Contacts
Standards
CE Certified, CSA Certified, IMQ, UL Listed, VDE Approved
Horsepower @ 120V AC
1/6 hp
Series
MY Series
Maximum Switching Voltage
125V DC, 250V AC
Pin Shape
Round
Input Voltage
24V AC
Compatible with Manufacturer Model Number
PY14, PY14-02, PY14-Y1, PYF14A-E, PYF14A-N, PYF14S, PYFZ-14-E
Weight
1.23 oz
Response Time
20 msec
Minimum Operating Temperature
-67 Degrees F
Maximum Operating Temperature
140 Degrees F
Sealing
Enclosed
Motor Rated
Yes
Coil Resistance
180 ohm
Horsepower @ 240V AC
1/6 hp
Power Consumption
1 VA, 1.2 VA
Push-To-Test Method
Lockable Push Test Button
Compatible Manufacturer Part Number
PY14, PY14-02, PY14-Y1, PYF14A-E, PYF14A-N, PYF14S, PYFZ-14-E
Compatible Manufacturer Model Number
PY14, PY14-02, PY14-Y1, PYF14A-E, PYF14A-N, PYF14S, PYFZ-14-E
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form 4PDT, Current Rating 5 A, Electrical Connection Plug-In, Flat Pin Width 0.102 in, Number of Pins 14, Pin Shape Round, Sealing Enclosed, Status Indicator LED Indicator, Contact Rating (AC) 5 A @ 240V, Contact Rating (DC) 5 A @ 28V, Horsepower @ 120V AC 1/6 hp, Horsepower @ 240V AC 1/6 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.42 in, Body Height 1.1 in, Body Width 0.85 in
