  13. Plug-In, General Purpose Relay, Square, 6.8 mA, 14, Plug-in
No Product Image Available

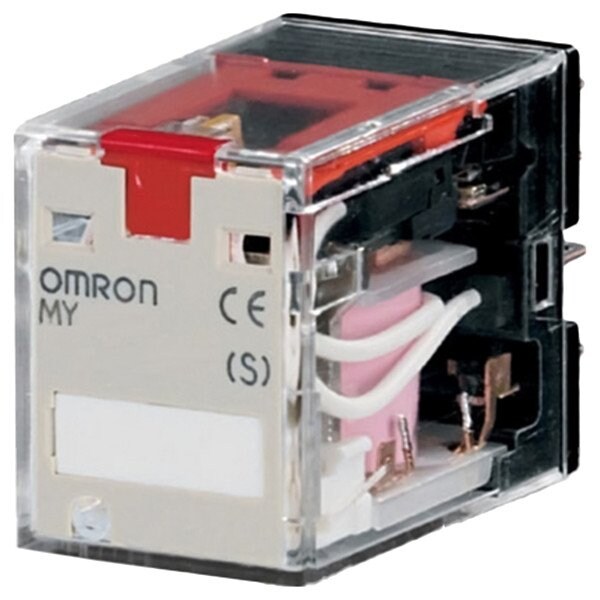

Plug-In, General Purpose Relay, Square, 6.8 mA, 14, Plug-in

  • Mfr # MY2N AC200/220 (S)

  • Zoro # G710190449

product price: $18.89
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
14
Coil Voltage
200/220V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MY2N AC200/220 (S)
Zoro #
G710190449
UPC #
4536854485756
Country of Origin
Japan

Dimensions

Body Height
1.73 in
Body Depth
1.41 in
Overall Depth
1.66 in
Body Width
0.88 in
Flat Pin Width
2.6 mm

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
14
Coil Voltage
200/220V AC
Current Rating
6.8 mA
Contact Form
DPDT
Contact Rating (AC)
2 A @ 250V, 5 A @ 250V
Contact Rating (DC)
2 A @ 30V, 5 A @ 30V
Features
Full Range of Sockets Covering Mounting by Screw, Box Clamp and Screw-Less Clamp Method, Screw-Less Clamp Terminal Sockets Available, Transparent Housing
Status Indicator
LED Indicator
Contact Material
Silver
Standards
RoHS
Frequency
50/60 Hz
Mechanical Operating Durability
50,000,000, 100,000,000
Response Time
20 msec
Dielectric Strength
1,000V AC, 50/60 Hz for 1 min Between Contacts of the Same Polarity, 2,000V AC, 50/60 Hz for 1 min Between Coil and Contacts, Between Contacts of Different Polarity
Electrical Operating Durability
500,000
Horsepower @ 120V AC
1/10 hp
Minimum Switching Current
10 A
Horsepower @ 240V AC
1/6 hp
Insulation Resistance
100 megaohm
Power Consumption
1.1 VA
Maximum Operating Temperature
70 Degrees C
Minimum Operating Temperature
-55 Degrees C
Series
MY Series
Weight
35 g
Push-To-Test Method
Lockable Push Test Button
Resistance Properties
Insulation-Resistant, Shock-Resistant, Vibration-Resistant
Coil Resistance
12,950 ohm
Maximum Switching Voltage
125V DC, 250V AC

Description

General Purpose Relay, Base Shape Square, Coil Voltage 200/220V AC, Contact Form DPDT, Electrical Connection Plug-In, Flat Pin Width 2.6 mm, Number of Pins 14, Status Indicator LED Indicator, Contact Rating (AC) 2 A @ 250V, 5 A @ 250V, Contact Rating (DC) 2 A @ 30V, 5 A @ 30V, Horsepower @ 120V AC 1/10 hp, Horsepower @ 240V AC 1/6 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.41 in, Body Height 1.73 in, Body Width 0.88 in, Coil Resistance 12,950 ohm
