  13. Push Buttn Cntrol Station, 1NC, Mshrm Head
Shop All Push Button Control Stations
Omron

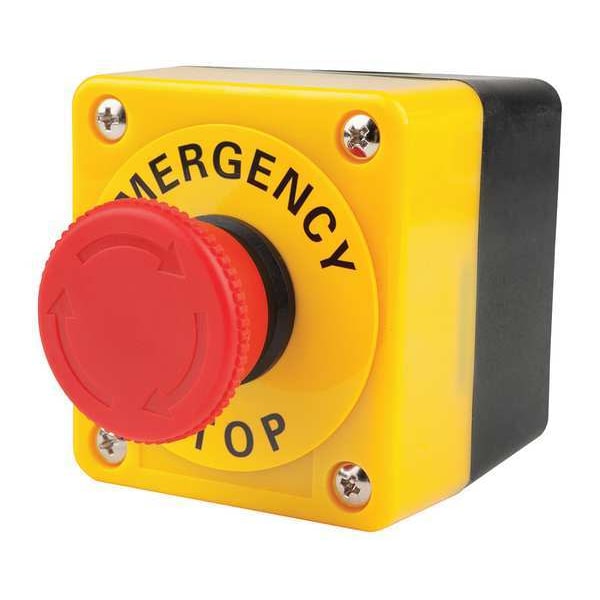

Push Buttn Cntrol Station, 1NC, Mshrm Head

product price: $130.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Contact Form 2NC
  • Legend Emergency Stop
  • Type of Operator 40mm Mushroom Head
  • Number of Pilot Lights 0
  • Number of Operators 1
See all product information

Product Information

Dimensions

Size 22 mm
Overall Depth 3.41 in
Panel Cutout Diameter 22 mm
Hub Size - Maximum 3 7/16 in
Overall Width 1.57 in
Overall Height 1.57 in

Details

Item Control Station
Contact Form 2NC
Legend Emergency Stop
Type of Operator 40mm Mushroom Head
Number of Pilot Lights 0
Number of Operators 1
NEMA Rating Not Rated
Series A22E
Hub Style Feed-Thru
Contact Rating 10A @ 600V AC
Standards CE, UL Listed
Action Maintained
Head Material Plastic
Mechanical Interlock No
IP Rating IP65
Enclosure Material Plastic
Enclosure Color Yellow/Black
DC Contact Rating 1.5 A @ 24 V
Operator Color Red
AC Contact Rating 10 A @ 600 V
Mounting Style Surface
Number of Speeds 1
Mounting Orientation Vertical
Includes Mechanical Interlock No Mechanical Interlock Included.
Operator Configuration Mushroom Head Push Button
Product Type Control Station
Hazardous Location Specification Class II, Div 1 and 2, Group E, F, G
Selector Switch Number of Positions 2
NEMA Enclosure Rating Not Rated
Maintained Action Release Push/Pull

Description

Control Station, Number of Operators 1, Number of Pilot Lights 0, Size 22 mm, Legend Emergency Stop, Type of Operator 40mm Mushroom Head, Action Maintained, Operator Color Red, Contact Form 2NC, Mechanical Interlock No, NEMA Rating Not Rated, Contact Rating 10A @ 600V AC, IP Rating IP65, Head Material Plastic, Enclosure Material Plastic, Enclosure Color Yellow/Black, Standards CE, UL Listed
