Shop OMRON

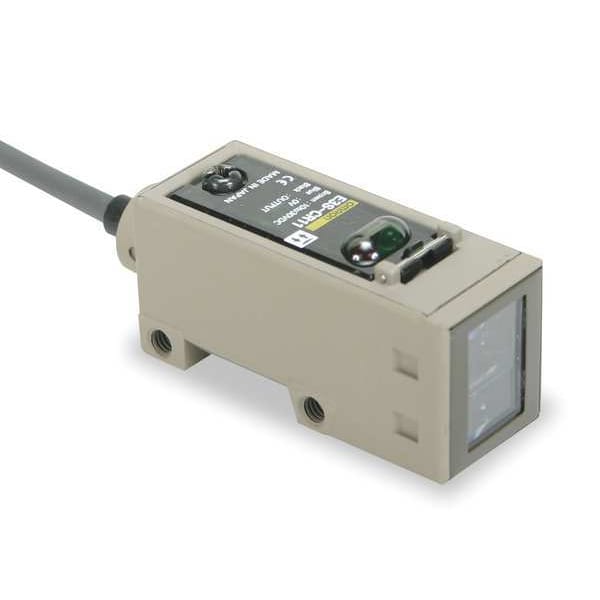

Retroreflective Photoelectric Sensor, Bare Wire, Straight, Rectangular, Selectable Light On/Dark On, NPN and PNP

  • Mfr # E3SCR11

  • Zoro # G3295582

product price:
$
264.99
/ea
Free Shipping & Returns

Key Features

Sensing Method
Retroreflective
Electrical Connection
Bare Wire
Style
Rectangular
Width
0.91"
Orientation
Straight
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E3SCR11
Zoro #
G3295582
UPC #
-
Country of Origin
China

Dimensions

Width
0.91"
Depth
1.97"
Cable Length
2 m
Width - Rectangular Photoelectric Sensor
23 mm
Min. Object Size
75mm dia Opaque
Height - Rectangular Photoelectric Sensor
20 mm
Length
0.80"
Depth - Rectangular Photoelectric Sensor
50 mm
Overall Height
20 mm
Overall Depth
50 mm
Minimum Object Size
75mm Dia. Opaque
Overall Width
23 mm

Details

Item
Photoelectric Sensor
Sensing Method
Retroreflective
Electrical Connection
Bare Wire
Style
Rectangular
Orientation
Straight
Operating Mode
Selectable Light On/Dark On
IP Rating
IP67
Output Circuit Type
NPN and PNP
DC Voltage Rating
10-30V DC
Standards
CE
Light Source
Red LED
Footnotes
2,3,4
Power Requirement - Rectangular Photoelectric Sensor
10 to 30V DC
Max. Load Current
100 mA
Max. Sensing Distance - Rectangular Photoelectric Sensor
3 m
Features
Output Short Circuit Protection, Power Supply Reverse Polarity Protection
Response Time
1 msec
Operating Temp. Range
-25 Degrees to 55 Degrees C
Max. Sensing Distance
3m
Power Requirement
10 to 30VDC
Body Material
Zinc
Operating Temperature - Maximum
131 Degrees F
Electrical Installation Type
Prewired Cable
Emitted Sensor Light
Red Light
Includes Indicator Lights
Indicator Lights Included
NEMA Enclosure Rating
6P
Product Type
Photoelectric Sensor
Operating Temperature - Minimum
-13 Degrees F
Sensing Distance - Maximum
3 m
Series
E3S-C
Load Current - Maximum
40 mA

Description

Photoelectric Sensor, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On
