  13. Snap Action Switch, Hinge Roller, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating

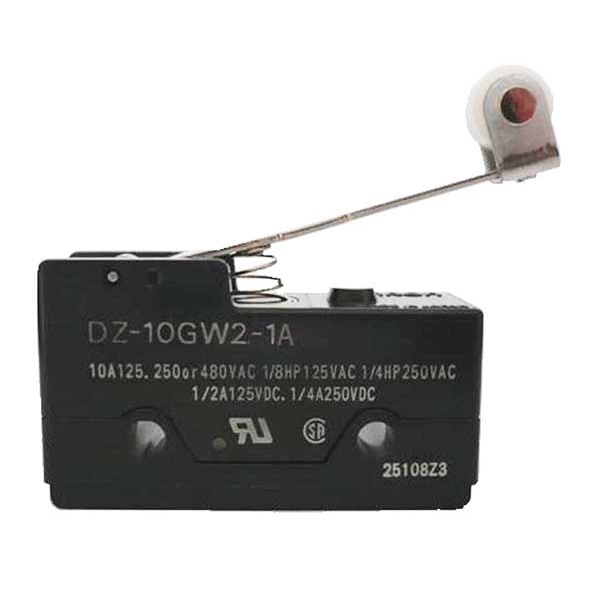

Omron Snap Action Switch, Hinge Roller, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating DZ-10GW2-1A - main

Snap Action Switch, Hinge Roller, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating

  • Mfr # DZ-10GW2-1A

  • Zoro # G0808936

product price: $22.55
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Lever Actuator Length - Snap Action Switch
1.91 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DZ-10GW2-1A
Zoro #
G0808936
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
1.91 in
Height - Snap Action Switch
1.1 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Mounting Dimension
1.00" Centers
Mounting Dimension - Snap Action Switch
1.00 in Centers
Height
1.10"
Depth
0.69"
Actuator Length
1.91"
Length
1.94"
Roller Diameter
0.37 in
Lever Actuator Length
1.91 in
Overall Width
2.43 in
Overall Height
0.69 in
Overall Depth
2.2 in
Body Depth
2.2 in
Body Height
0.69 in
Roller Width
0.16 in
Body Width
2.43 in
Mounting Hole Diameter
3/16 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Over Travel
0.047 in
Voltage Rating
125/250VAC
Housing Material
Phenolic
Operating Temp. Range
-13 Degrees to 176 Degrees F
Operating Force
7.52 oz
Type of Actuator
Hinge Roller Lever
Terminal Type
Solder
Current Rating
10A
Standards
CSA, RU
Contact Form
3NO/3NC
Electrical Connection - Snap Action Switch
Solder Lug
Differential Travel
0.13 in
Watertight - Snap Action Switch
No
Release Force
1.47 ozf
Max. Pretravel
15.8 mm
Series
DZ
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
2 A @ 480 V
Roller Adjustability
Fixed
Operating Force - Minimum
2.09 N
Electrical Connection
Solder
Roller Position
Inside Offset
Operating Force - Maximum
2.09 N
Body Material
Phenolic
Roller Material
Plastic
Center Mounting Hole Distance
1 in
Overtravel
0.047 in
Operating Temperature - Minimum
-13 Degrees F
Actuator Style
Hinge Roller Lever
Pretravel
0.622 in
Differential Travel - Maximum
0.1299 in
Operating Temperature - Maximum
176 Degrees F

Description

Snap Action Switch, Hinge Roller, Lever, AC Contact Rating - Snap Action Switch 10 A @ 240 V, DC Contact Rating - Snap Action Switch 10 A @ 30 V, Contact Form- Switches DPDT, Lever Actuator Length - Snap Action Switch 1.91 in, Height - Snap Action Switch 1.1 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series DZ
