  13. Snap Action Switch, Hinge Roller, Lever Actuator, SPDT, 1 A at 240 V AC Contact Rating

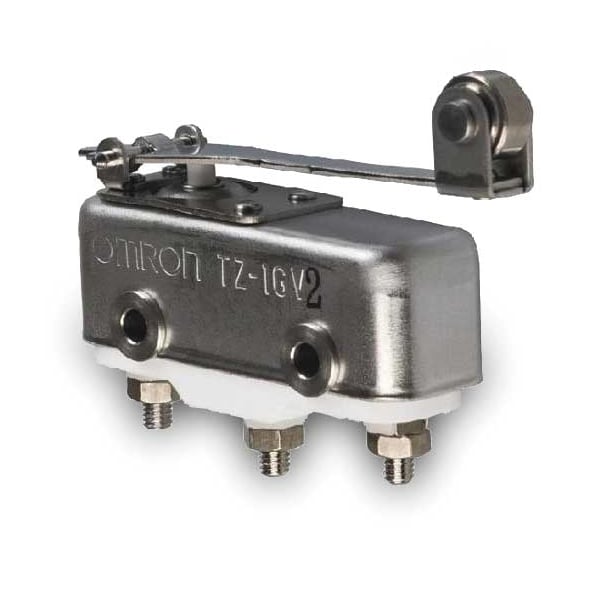

Omron Snap Action Switch, Hinge Roller, Lever Actuator, SPDT, 1 A at 240 V AC Contact Rating TZ-1GV2 - main

Snap Action Switch, Hinge Roller, Lever Actuator, SPDT, 1 A at 240 V AC Contact Rating

  • Mfr # TZ-1GV2

  • Zoro # G1190226

product price: $293.99
/ea
Free Shipping & Returns

Key Features

Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
1 A @ 240 V
DC Contact Rating - Snap Action Switch
1 A @ 30 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.91 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TZ-1GV2
Zoro #
G1190226
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
1.91 in
Height - Snap Action Switch
1.26 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Height
1.26"
Depth
0.69"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Length
1.94"
Actuator Length
1.91"
Mounting Dimension
1.00" Centers
Lever Actuator Length
1.91 in
Roller Width
0.16 in
Overall Depth
0.69 in
Body Height
0.69 in
Body Width
1.94 in
Overall Width
1.94 in
Body Depth
0.69 in
Roller Diameter
0.37 in
Mounting Hole Diameter
1/8 in
Overall Height
0.69 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
1 A @ 240 V
DC Contact Rating - Snap Action Switch
1 A @ 30 V
Contact Form- Switches
SPDT
Housing Material
Phenolic
Release Force
0.72 ozf
Watertight - Snap Action Switch
No
Type of Actuator
Hinge Roller Lever
Terminal Type
Bolt
Operating Temp. Range
-85 Degrees to 752 Degrees F
Current Rating
1A
Voltage Rating
125/250VAC
Electrical Connection - Snap Action Switch
Bolt
Series
TZ
Max. Pretravel
0.102 in
Over Travel
0.138 in
Operating Force
4.59 oz
Differential Travel
0.039 in
Contact Form
1NO/1NC
AC Contact Rating
1 A @ 240 V
DC Contact Rating
1 A @ 30 V
Operating Temperature - Maximum
752 Degrees F
Center Mounting Hole Distance
1 in
Overtravel
0.138 in
Roller Material
Stainless Steel
Operating Force - Minimum
1.27 N
Body Material
Phenolic
Actuator Style
Hinge Lever
Operating Temperature - Minimum
-85 Degrees F
Electrical Connection
Screw
Pretravel
0.102 in
Differential Travel - Maximum
0.0394 in
Operating Force - Maximum
1.27 N
Roller Position
Inside Offset

Description

Snap Action Switch, Hinge Roller, Lever, AC Contact Rating - Snap Action Switch 1 A @ 240 V, DC Contact Rating - Snap Action Switch 1 A @ 30 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.91 in, Height - Snap Action Switch 1.26 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Bolt, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series TZ
