  13. Snap Action Switch, Panel Mount, Plunger, Roller Actuator, SPDT, 20 A at 480 V AC Contact Rating

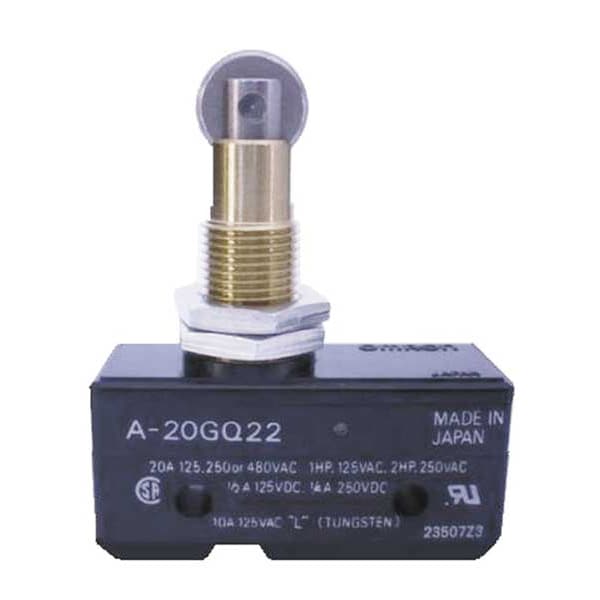

Omron Snap Action Switch, Panel Mount, Plunger, Roller Actuator, SPDT, 20 A at 480 V AC Contact Rating A-20GQ22 - main

Snap Action Switch, Panel Mount, Plunger, Roller Actuator, SPDT, 20 A at 480 V AC Contact Rating

  • Mfr # A-20GQ22

  • Zoro # G2916347

product price: $27.99
/ea

Key Features

Actuator Type - Snap Action Switch
Panel Mount, Plunger, Roller
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
0.89 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A-20GQ22
Zoro #
G2916347
UPC #
-
Country of Origin
Japan

Dimensions

Height - Snap Action Switch
0.89 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Actuator Length
1.37"
Depth
0.69"
Height
0.89"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Length
1.94"
Mounting Dimension
1.00" Centers
Roller Diameter
0.5 in
Overall Height
0.89 in
Roller Width
0.19 in
Body Height
0.89 in
Body Depth
0.69 in
Overall Depth
0.69 in
Overall Width
1.94 in
Body Width
1.94 in
Mounting Hole Diameter
3/16 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Panel Mount, Plunger, Roller
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Contact Form- Switches
SPDT
Max. Pretravel
0.051 in
Over Travel
0.14 in
Standards
CSA, UL Listed
Release Force
9.88 ozf
Operating Force
22.24 oz
Contact Form
1NO/1NC
Housing Material
Phenolic
Current Rating
20A
Electrical Connection - Snap Action Switch
Solder Lug
Type of Actuator
Panel Mount Roller Plunger
Operating Temp. Range
-13 Degrees to 176 Degrees F
Differential Travel
0.014 in
Watertight - Snap Action Switch
No
Terminal Type
Solder
Voltage Rating
125/250/480VAC
Series
A
AC Contact Rating
20 A @ 480 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
Pretravel
0.051 in
Electrical Connection
Solder
Operating Force - Maximum
6.18 N
Roller Position
Outside Offset
Operating Force - Minimum
3.92 N
Actuator Style
Roller Plunger
Overtravel
0.141 in
Operating Temperature - Minimum
-13 Degrees F
Body Material
Phenolic
Roller Material
Stainless Steel
Operating Temperature - Maximum
176 Degrees F
Center Mounting Hole Distance
1 in
Differential Travel - Maximum
0.0138 in
Roller Adjustability
Fixed

Description

Snap Action Switch, Panel Mount, Plunger, Roller, AC Contact Rating - Snap Action Switch 20 A @ 480 V, DC Contact Rating - Snap Action Switch 20 A @ 14 V, Contact Form- Switches SPDT, Height - Snap Action Switch 0.89 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series A
