  7. Solder, General Purpose Relay, Square, 37.7 mA, 14 Pins, PCB
No Product Image Available

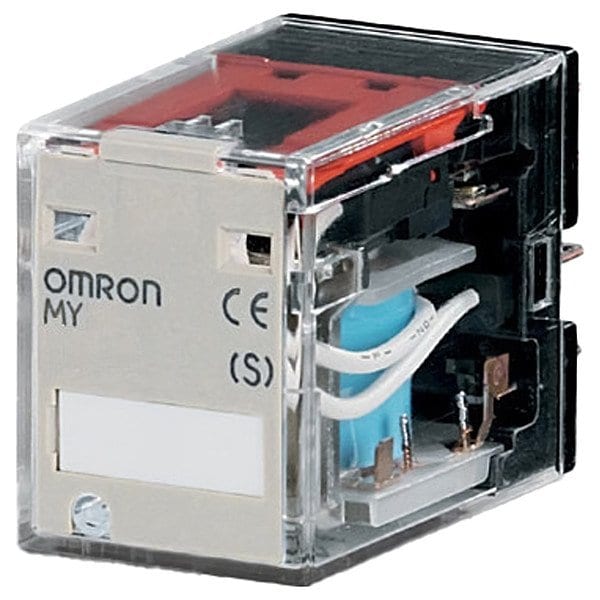

Solder, General Purpose Relay, Square, 37.7 mA, 14 Pins, PCB

  • Mfr # MY2-02-DC24

  • Zoro # G310190450

product price:  $19.15
/ea

Key Features

Mounting Style
Solder
Electrical Connection
PCB
Base Shape
Square
Number of Pins
14
Coil Voltage
24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MY2-02-DC24
Zoro #
G310190450
UPC #
4536854748257
Country of Origin
China

Dimensions

Body Depth
1.41 in
Body Height
1.73 in
Overall Depth
1.66 in
Flat Pin Width
2.6 mm
Body Width
0.88 in

Details

Item
General Purpose Relay
Mounting Style
Solder
Electrical Connection
PCB
Base Shape
Square
Number of Pins
14
Coil Voltage
24V DC
Current Rating
37.7 mA
Contact Form
DPDT
Contact Rating (AC)
2 A @ 240V, 5 A @ 240V
Contact Rating (DC)
2 A @ 24V, 5 A @ 24V
Standards
RoHS
Features
Full Range of Sockets Covering Mounting by Screw, Box Clamp and Screw-Less Clamp Method, Screw-Less Clamp Terminal Sockets Available, Transparent Housing
Contact Material
Silver
Status Indicator
LED Indicator
Series
MY Series
Insulation Resistance
100 megaohm
Horsepower @ 120V AC
1/10 hp
Frequency
50/60 Hz
Minimum Operating Temperature
-55 Degrees C
Coil Resistance
650 ohm
Electrical Operating Durability
500,000
Horsepower @ 240V AC
1/6 hp
Response Time
20 msec
Weight
35 g
Resistance Properties
Insulation-Resistant, Shock-Resistant, Vibration-Resistant
Mechanical Operating Durability
50,000,000, 100,000,000
Power Consumption
0.9 W
Maximum Switching Voltage
125V DC, 250V AC
Dielectric Strength
1,000V AC, 50/60 Hz for 1 min Between Contacts of the Same Polarity, 2,000V AC, 50/60 Hz for 1 min Between Coil and Contacts, Between Contacts of Different Polarity
Push-To-Test Method
Lockable
Maximum Operating Temperature
70 Degrees C
Minimum Switching Current
5 A

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form DPDT, Electrical Connection PCB Terminal, Flat Pin Width 2.6 mm, Number of Pins 8, Status Indicator LED Indicator, Contact Rating (AC) 2 A @ 240V, 5 A @ 240V, Contact Rating (DC) 2 A @ 24V, 5 A @ 24V, Horsepower @ 120V AC 1/10 hp, Horsepower @ 240V AC 1/6 hp, Mounting Style Soldering, Push-To-Test Method Lockable, Body Depth 1.41 in, Body Height 1.73 in, Body Width 0.88 in, Coil Resistance 650 ohm
