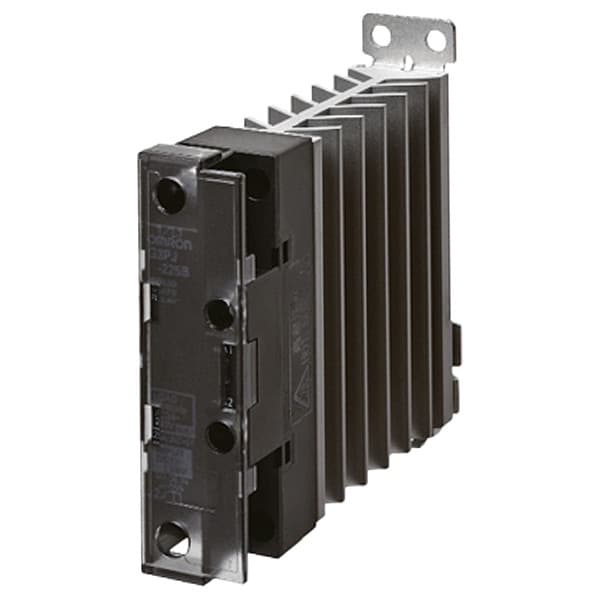

Solid State Relay, 1 Phase, Screw, DIN Rail/Screw, Phototriac
- Mfr # G3PJ-225B DC12-24
- Zoro # G010080211
product price:Â
$
135.99
/ea
Free Shipping & Returns
Key Features
Electrical Phase
1
Electrical Connection
Screw
Mounting Style
DIN Rail/Screw
Switch Component Type
Phototriac
Heat Sink
Included
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- G3PJ-225B DC12-24
- Zoro #
- G010080211
- UPC #
- 4548583783348
- Country of Origin
- United States
- Item
- Solid State Relay
- Electrical Phase
- 1
- Electrical Connection
- Screw
- Mounting Style
- DIN Rail/Screw
- Switch Component Type
- Phototriac
- Heat Sink
- Included
- Standards
- C-UL and TUV (EN 60947-4-3), Pollution Category 2, RoHS
- Input Voltage
- 9.6 to 30V DC
- Output Switching Mode
- Zero Crossing
- Response Time
- 1 msec
- Current Type
- DC
- Insulation Resistance
- 100 megaohm at 500V DC
- Series
- G3PJ
- Status Indicator
- LED Indicator
- Weight
- 240 g
- Input Current
- 7 mA
- Dielectric Strength
- 2,500V AC
- Maximum Operating Temperature
- 80 Degrees C
- Drop Out Voltage
- 1.6V
- Minimum Operating Temperature
- -30 Degrees C
- Output Voltage Range
- 19 to 264V AC
- Maximum Output Current with Heat Sink
- 27 A
- Voltage Type
- AC Output
Dimensions
- Body Width
- 0.88 in
- Overall Depth
- 3.93 in
- Body Height
- 3.93 in
- Body Depth
- 3.93 in
Description
Solid State Relay, Electrical Connection Screw, Heat Sink Included, Input Current 7 mA, Input Voltage 9.6 to 30V DC, Maximum Output Current with Heat Sink 27 A, Output Switching Mode Zero Crossing, Output Voltage Range 19 to 264V AC, Standards C-UL and TUV (EN 60947-4-3), Pollution Category 2, RoHS, Switch Component Type Phototriac, Current Type DC, Electrical Phase Single, Mounting Style DIN Rail/Screw, Voltage Type AC Output, Body Depth 3.93 in, Body Height 3.93 in, Body Width 0.88 in
