No Product Image Available

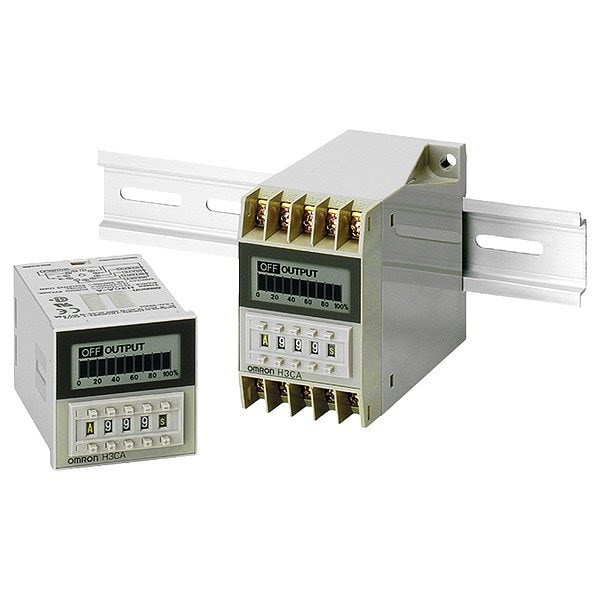

Solid State Timer

  • Mfr # H3CA-8H AC100/110/120

  • Zoro # G310080164

product price: $281.99
/ea
Free Shipping & Returns

Key Features

Contact Form
SPDT
Standards
(EMI) EN61812-1, (EMS) EN61812-1, Conforms to EN61812-1, Emission AC mains: EN55011 Group 1 Class A, Emission Enclosure: EN55011 Group 1 Class A, Immunity Burst: IEC61000-4-4, Immunity Conducted Disturbance: IEC61000-4-6, Immunity ESD: IEC61000-4-2, Immunity RF-interference: IEC61000-4-3, Immunity Surge: IEC61000-4-5, Immunity Voltage Dip/Interruption: IEC61000-4-11, UL508, CSA C22.2 No. 14, LR, NK
Input Voltage
100/110/120V AC
Electrical Connection
Socket
Contact Material
Silver Alloy
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H3CA-8H AC100/110/120
Zoro #
G310080164
UPC #
4547648330923
Country of Origin
China

Dimensions

Body Height
1.88 in
Body Depth
2.96 in
Body Width
1.88 in
Overall Depth
3.5 in

Details

Item
Solid State Timer
Contact Form
SPDT
Standards
(EMI) EN61812-1, (EMS) EN61812-1, Conforms to EN61812-1, Emission AC mains: EN55011 Group 1 Class A, Emission Enclosure: EN55011 Group 1 Class A, Immunity Burst: IEC61000-4-4, Immunity Conducted Disturbance: IEC61000-4-6, Immunity ESD: IEC61000-4-2, Immunity RF-interference: IEC61000-4-3, Immunity Surge: IEC61000-4-5, Immunity Voltage Dip/Interruption: IEC61000-4-11, UL508, CSA C22.2 No. 14, LR, NK
Input Voltage
100/110/120V AC
Electrical Connection
Socket
Contact Material
Silver Alloy
Series
H3CA
Contact Rating (AC)
3 A @ 250V (Resistive Load)
Reset Method
Self Reset
IP Rating
IP40
Coil Voltage
100/110/120V AC
Base Shape
Octal
Delay Function
Power On Delay
Power Consumption
10 VA
Frequency
50/60 Hz
Maximum Time Setting
9,990 hr
Contact Rating (DC)
100.00 mA @ 5V
Number of Delay Functions
7
Compatible with Manufacturer Model Number
P2CF-08, P2CF-08-E, P3G-08, PL08
Relay Operation
Solid State
Adjustment Interface
Digital
Maximum Operating Temperature
55 Degrees C
Electrical Operating Durability
100,000
Minimum Time Setting
0.1 sec
Operating Time Accuracy
+/-0.3% +/-0.05 s
Mechanical Operating Durability
1,000,000
Number of Pins
8
Minimum Operating Temperature
-10 Degrees C
Compatible Manufacturer Part Number
P2CF-08, P2CF-08-E, P3G-08, PL08
Compatible Manufacturer Model Number
P2CF-08, P2CF-08-E, P3G-08, PL08
For Use With Mfr. Model Number
P2CF-08, P2CF-08-E, P3G-08, PL08
Mounting Style
DIN Rail, Surface
Compatible with Manufacturer Model No.
P2CF-08, P2CF-08-E, P3G-08, PL08
Compatible with Mfr. Model No.
P2CF-08, P2CF-08-E, P3G-08, PL08
For Use with Mfr Model Number
P2CF-08, P2CF-08-E, P3G-08, PL08
Compatible Pump Manufacturer Part Number
P2CF-08, P2CF-08-E, P3G-08, PL08
Compatible Mfr. Model Number
P2CF-08, P2CF-08-E, P3G-08, PL08

Description

Solid State Timer, Base Shape Octal, Coil Voltage 100/110/120V AC, Contact Form SPDT, Contact Rating (AC) 3 A @ 250V (Resistive Load), Contact Rating (DC) 100.00 mA @ 5V, Number of Delay Functions 7, Delay Function Power On Delay, Electrical Connection Socket, IP Rating IP40, Input Voltage 100/110/120V AC, Minimum Time Setting 0.1 sec, Maximum Time Setting 9,990 hr, Number of Pins 8, Mounting Style DIN Rail, Surface, Adjustment Interface Digital, Body Depth 2.96 in, Body Height 1.88 in
