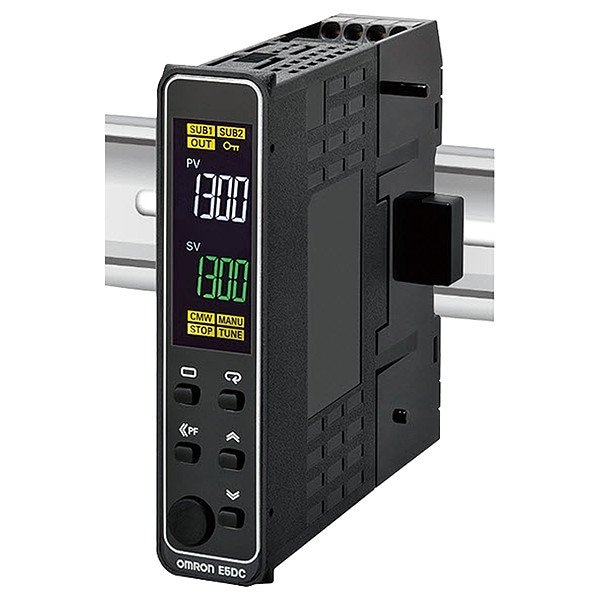

Temperature Controller
Mfr # E5DC-QX2DSM-002
Zoro # G710080450
product price:Â $469.99
/ea
Free Shipping & Returns
Key Features
Digital/Analog
Digital
Sensor Type
Infrared Sensor, Linear, RTD, Thermocouple
Description/Special Features
Heater Burnout Detection, Second Set Point
Voltage
24V AC/DC
Input Voltage
24V AC/DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- E5DC-QX2DSM-002
- Zoro #
- G710080450
- UPC #
- 4548583422179
- Country of Origin
- China
Dimensions
- Width
- 22.5 mm
- Depth
- 85 mm
- Overall Width
- 22 1/2 mm
Details
- Item
- Temperature Controller
- Digital/Analog
- Digital
- Sensor Type
- Infrared Sensor, Linear, RTD, Thermocouple
- Description/Special Features
- Heater Burnout Detection, Second Set Point
- Voltage
- 24V AC/DC
- Input Voltage
- 24V AC/DC
- Switch Function
- SPST NO
- Output
- Relay, (2) Alarm
- Temp. Range
- Greater Than700 Degrees C
- Control Mode
- PID, On/Off Action
- Amps
- 0 to 20mA, 4 to 20mA
- Standards
- cULus, EAC, EN 61010-1 (IEC 61010-1), Korean Wireless Regulations (Radio Law: KC Mark), Lloyd's Standards (E5DC Only), RCM, UL 61010-1/CSA C22.2 No.61010-1
- Alarms
- (2) Relays
- Series
- E5DC
- Display Type
- Digital
- Product Type
- Temperature Controller
- Current
- 0 to 20 mA, 4 to 20 mA
- Temperature - Minimum
- 700 Degrees C
Description
Temperature Controller, Digital, Infrared Sensor, Linear, RTD, Thermocouple Sensor Type, Input Voltage 24V AC/DC, Switch Function SPST NO, Output Relay, (2) Alarm, Temp. Range greater than 700 Degrees C, Control Mode PID, On/Off Action, 0 to 20mA, 4 to 20mA Amps, Width 22.5 mm, Depth 85 mm, Heater Burnout Detection, Second Set Point, Alarms (2) Relays
