  11. Through-Beam Photoelectric Sensor, Solder Terminal, Right Angle, T-Slot, Light On, NPN

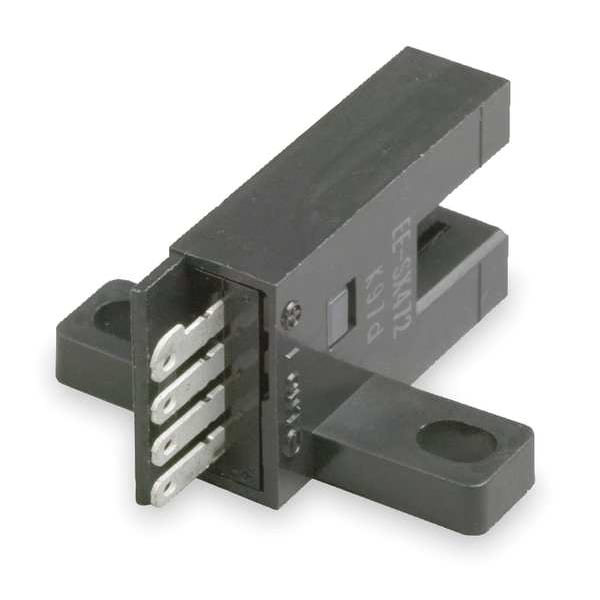

Omron Through-Beam Photoelectric Sensor, Solder Terminal, Right Angle, T-Slot, Light On, NPN EE-SX472 - main

Through-Beam Photoelectric Sensor, Solder Terminal, Right Angle, T-Slot, Light On, NPN

  • Mfr # EE-SX472

  • Zoro # G0712467

product price: $24.99
/ea

Key Features

Width
0.75"
Depth
1.11"
Sensing Method
Through-Beam
Body Material
PBT
Height - Rectangular Photoelectric Sensor
26 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EE-SX472
Zoro #
G0712467
UPC #
-
Country of Origin
Japan

Dimensions

Width
0.75"
Depth
1.11"
Height - Rectangular Photoelectric Sensor
26 mm
Length
1.02"
Min. Object Size
2 x 0.80mm Opaque
Width - Rectangular Photoelectric Sensor
19 mm
Depth - Rectangular Photoelectric Sensor
28 mm
Overall Height
26 mm
Minimum Object Size
2mm x 0.8mm Opaque
Overall Width
19 mm
Overall Depth
28 mm

Details

Item
Photoelectric Sensor
Sensing Method
Through-Beam
Body Material
PBT
Max. Load Current
100 mA
IP Rating
IP50
Features
Output Short-Cut Protection
Max. Sensing Distance - Rectangular Photoelectric Sensor
5 mm
Power Requirement
5 to 24VDC
Operating Temp. Range
-25 Degrees to 55 Degrees C
Power Requirement - Rectangular Photoelectric Sensor
5 to 24V DC
Light Source
Infrared LED
Operating Frequency
1,000 Hz
Max. Sensing Distance
5mm
Electrical Connection
Solder Terminal
Standards
CE, RU
Response Time
0.17 msec
Operating Mode
Light On
Orientation
Right Angle
Load Current - Maximum
100 mA
Series
EE-SX47
Operating Temperature - Minimum
-13 Degrees F
Sensing Distance - Maximum
5 mm
Operating Temperature - Maximum
131 Degrees F
DC Voltage Rating
5-24V DC
Style
T-Slot
Electrical Installation Type
Solder Terminal
Includes Indicator Lights
Indicator Lights Included
Output Circuit Type
NPN
Emitted Sensor Light
Infrared
Switching Frequency
3 kHz

Description

Photoelectric Sensor, Operating Mode - Photoelectric Sensor Light On
