  9. Timer 8 Mode AC/DC 24 to 240V SPDT
No Product Image Available

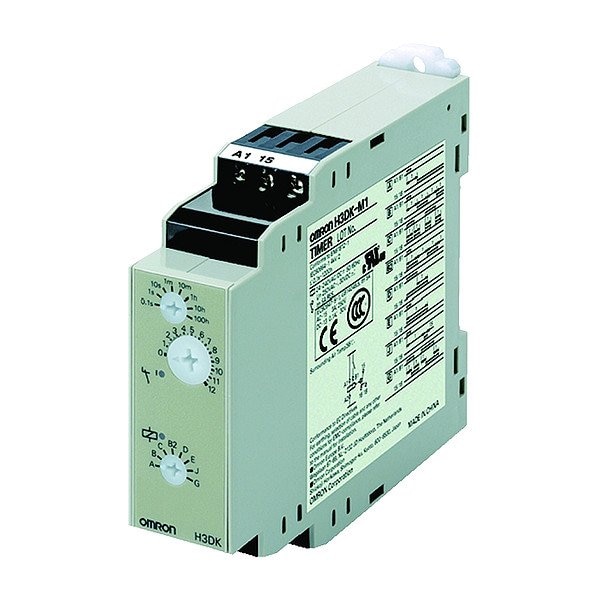

Timer 8 Mode AC/DC 24 to 240V SPDT

  • Mfr # H3DK-M1 AC/DC24-240

  • Zoro # G810080169

product price: $117.99
/ea
Free Shipping & Returns

Key Features

Contact Form
SPDT
Standards
(EMI) EN 61812-1, (EMS) EN 61812-1, CCC: GB/T 14048.5 Pollution Degree 2, Overvoltage Category III, cURus: UL 508/CSA C22.2 No. 14, Emission AC Mains: EN 55011 Class B, EN 50274: Finger Protection, Back-of-Hand Proof, EN 61812-1: Pollution Degree 2, Overvoltage Category III, Fluctuations and Flicker: EN61000-3-3, Harmonic Current: EN 61000-3-2, Immunity Burst: IEC 61000-4-4, Immunity Conducted Disturbance: IEC 61000-4-6, Immunity ESD: IEC 61000-4-2, Immunity RF-interference: IEC 61000-4-3, Immunity Surge: IEC 61000-4-5, Immunity Voltage Dip/Interruption: IEC 61000-4-11, LR: Test Specification No. 1-2002 Category ENV 1.2, Radiated Emissions: EN 55011 Class B
Input Voltage
24 to 240V AC/DC
Electrical Connection
Screw Terminal
Series
H3DK-M
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H3DK-M1 AC/DC24-240
Zoro #
G810080169
UPC #
4548583744967
Country of Origin
Indonesia

Dimensions

Body Width
0.88 in
Overall Depth
3.93 in
Body Height
0.88 in
Body Depth
3.93 in

Details

Item
Timer
Contact Form
SPDT
Standards
(EMI) EN 61812-1, (EMS) EN 61812-1, CCC: GB/T 14048.5 Pollution Degree 2, Overvoltage Category III, cURus: UL 508/CSA C22.2 No. 14, Emission AC Mains: EN 55011 Class B, EN 50274: Finger Protection, Back-of-Hand Proof, EN 61812-1: Pollution Degree 2, Overvoltage Category III, Fluctuations and Flicker: EN61000-3-3, Harmonic Current: EN 61000-3-2, Immunity Burst: IEC 61000-4-4, Immunity Conducted Disturbance: IEC 61000-4-6, Immunity ESD: IEC 61000-4-2, Immunity RF-interference: IEC 61000-4-3, Immunity Surge: IEC 61000-4-5, Immunity Voltage Dip/Interruption: IEC 61000-4-11, LR: Test Specification No. 1-2002 Category ENV 1.2, Radiated Emissions: EN 55011 Class B
Input Voltage
24 to 240V AC/DC
Electrical Connection
Screw Terminal
Series
H3DK-M
Contact Material
Gold Plating; Silver Alloy
Minimum Operating Temperature
-20 Degrees C
Mounting Style
DIN Rail
Power Consumption
4.5 VA
Contact Rating (AC)
5 A @ 250V (Resistive Load)
Weight
120 g
Coil Voltage
24 to 240V AC/DC
Maximum Time Setting
1,200 hr
Mechanical Operating Durability
1,000,000
Maximum Operating Temperature
55 Degrees C
Electrical Operating Durability
100,000
Contact Rating (DC)
10.00 mA @ 5V
IP Rating
IP20; IP30
Delay Function
Flicker Off Start, Flicker On Start, Interval, On Delay, One Shot Output, Signal Off Delay, Signal On/OFF Delay
Number of Delay Functions
8
Adjustment Interface
Analog
Minimum Time Setting
0.1 sec
Current Rating
20 A
Operating Time Accuracy
+/-1% +/-10 ms in a range of 1.2 s, +/-1% FS max
Frequency
50/60 Hz
Number of Pins
9

Description

Timer, Coil Voltage 24 to 240V AC/DC, Contact Form SPDT, Contact Rating (AC) 5 A @ 250V (Resistive Load), Contact Rating (DC) 10.00 mA @ 5V, Number of Delay Functions 8, Delay Function Flicker Off Start, Flicker On Start, Interval, On Delay, One Shot Output, Signal Off Delay, Signal On/OFF Delay, Electrical Connection Screw Terminal, IP Rating IP20; IP30, Input Voltage 24 to 240V AC/DC, Minimum Time Setting 0.1 sec, Maximum Time Setting 1,200 hr, Number of Pins 9, Mounting Style DIN Rail
