  9. Timer
No Product Image Available

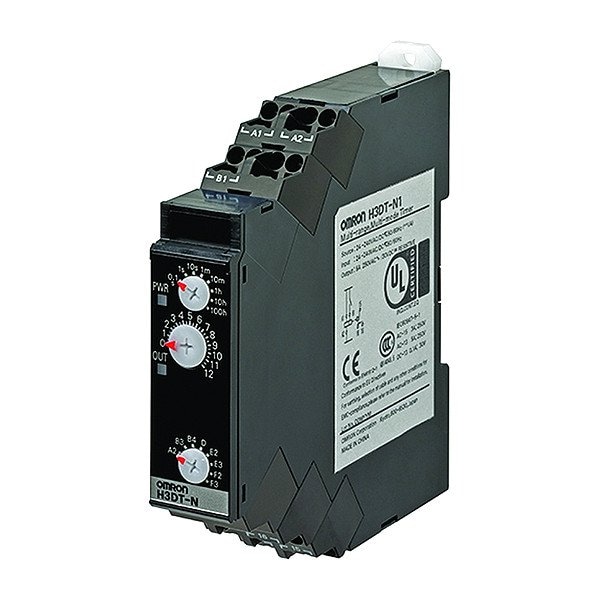

Timer

  • Mfr # H3DT-N2 AC/DC24-240

  • Zoro # G110080098

product price: $103.99
/ea
Free Shipping & Returns

Key Features

Contact Form
DPDT, SPDT
Standards
(EMI) EN 61812-1, (EMS) EN 61812-1, C-UL: UL 508/CSA C22.2 No. 14, CCC: GB/T 14048.5 Pollution degree 2, Overvoltage category III, Emission AC Mains: EN 55011 Class B, EN 61812-1: Pollution degree 2, Overvoltage category III, Harmonic Current: EN 61000-3-2, Immunity Burst: EN 61000-4-4, Immunity Conducted Disturbance: EN 61000-4-6, Immunity ESD: EN 61000-4-2, Immunity RF-interference: EN 61000-4-3, Immunity Surge: EN 61000-4-5, Immunity Voltage Dip/Interruption: EN 61000-4-11, LR: Category ENV1.2, Radiated Emissions: EN 55011 Class B, Voltage Fluctuations and Flicker: EN 61000-3-3
Input Voltage
24 to 240V AC, 24 to 240V DC
Electrical Connection
Push-On
Contact Material
Gold Plating; Silver Alloy
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H3DT-N2 AC/DC24-240
Zoro #
G110080098
UPC #
4548583773318
Country of Origin
China

Dimensions

Body Depth
3.54 in
Overall Depth
3.54 in
Body Width
0.68 in
Body Height
0.68 in

Details

Item
Timer
Contact Form
DPDT, SPDT
Standards
(EMI) EN 61812-1, (EMS) EN 61812-1, C-UL: UL 508/CSA C22.2 No. 14, CCC: GB/T 14048.5 Pollution degree 2, Overvoltage category III, Emission AC Mains: EN 55011 Class B, EN 61812-1: Pollution degree 2, Overvoltage category III, Harmonic Current: EN 61000-3-2, Immunity Burst: EN 61000-4-4, Immunity Conducted Disturbance: EN 61000-4-6, Immunity ESD: EN 61000-4-2, Immunity RF-interference: EN 61000-4-3, Immunity Surge: EN 61000-4-5, Immunity Voltage Dip/Interruption: EN 61000-4-11, LR: Category ENV1.2, Radiated Emissions: EN 55011 Class B, Voltage Fluctuations and Flicker: EN 61000-3-3
Input Voltage
24 to 240V AC, 24 to 240V DC
Electrical Connection
Push-On
Contact Material
Gold Plating; Silver Alloy
Series
H3DT-N
Operating Time Accuracy
+/-1% +/-10 ms in a range of 1.2 s, +/-1% FS max
Weight
100 g
Contact Rating (AC)
5 A @ 250V (Resistive Load)
Number of Delay Functions
8
Contact Rating (DC)
0.50 A @ 125V (Resistive Load), 5A @ 30V (Resistive Load)
Maximum Operating Temperature
60 Degrees C
Electrical Operating Durability
100,000
IP Rating
IP20; IP30
Delay Function
Cumulative (Interval), Cumulative (On Delay), Flicker Off Start (Power On Start), Flicker On Start (Power On Start), Interval (Power On Start), On Delay (Power On Delay), Signal Off Delay, Signal Off Interval
Frequency
50/60 Hz
Minimum Time Setting
0.1 sec
Minimum Operating Temperature
-20 Degrees C
Current Rating
5 A
Power Consumption
2.3 VA
Mounting Style
DIN Rail
Adjustment Interface
Analog
Coil Voltage
24 to 240V AC, 24 to 240V DC
Mechanical Operating Durability
1,000,000
Maximum Time Setting
1.2 sec
Number of Pins
10

Description

Timer, Coil Voltage 24 to 240V AC, 24 to 240V DC, Contact Form DPDT, SPDT, Contact Rating (AC) 5 A @ 250V (Resistive Load), Contact Rating (DC) 0.50 A @ 125V (Resistive Load), 5A @ 30V (Resistive Load), Current Rating 5 A, Number of Delay Functions 8, Delay Function Cumulative (Interval), Cumulative (On Delay), Flicker Off Start (Power On Start), Flicker On Start (Power On Start), Interval (Power On Start), On Delay (Power On Delay), Signal Off Delay, Signal Off Interval
