  9. TIMER MINI-MULTI TIME
No Product Image Available

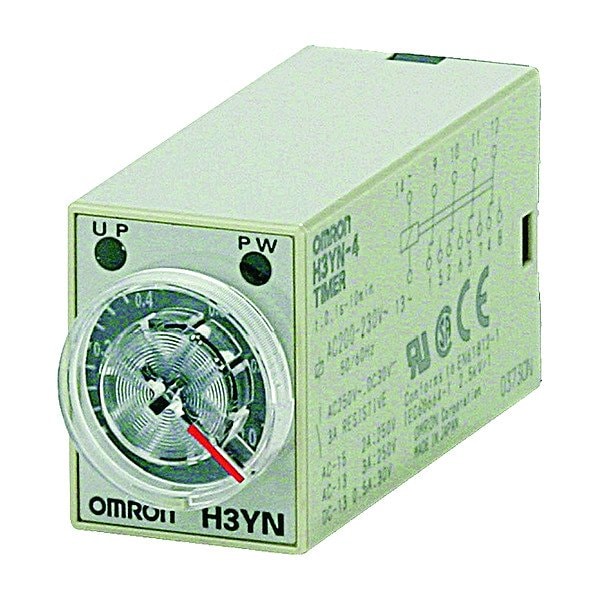

TIMER MINI-MULTI TIME

  • Mfr # H3YN-4 DC24

  • Zoro # G610080161

product price: $121.99
/ea
Free Shipping & Returns

Key Features

Contact Form
4PDT
Standards
(EMI) EN 61812-1, (EMS) EN 61812-1, Conforms to EN 61812-1 and IEC 60664-1. (2.5 kV/2 for H3YN-2/-21, 2.5 kV/1 for H3YN- 4/-41, H3YN-4-Z/-41-Z), Emission AC Mains: EN 55011 Group 1 Class A, Emission Enclosure: EN 55011 Group 1 Class A, Immunity Burst: IEC 61000-4-4, Immunity Conducted Disturbance: IEC 61000-4-6, Immunity ESD: IEC 61000-4-2, Immunity RF-interference: IEC 61000-4-3, Immunity Surge: IEC 61000-4-5, Immunity Voltage Dip/Interruption: IEC 61000-4-11, UL 508, CSA C22.2 No. 14, Lloyd's, CCC: GB/T 14048.5
Input Voltage
24V DC
Electrical Connection
Socket
Contact Material
Gold Clad; Silver; Silver Alloy
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H3YN-4 DC24
Zoro #
G610080161
UPC #
4548583755512
Country of Origin
Indonesia

Dimensions

Body Height
1.1 in
Body Width
0.84 in
Overall Depth
2.48 in
Body Depth
2.22 in

Details

Item
Timer
Contact Form
4PDT
Standards
(EMI) EN 61812-1, (EMS) EN 61812-1, Conforms to EN 61812-1 and IEC 60664-1. (2.5 kV/2 for H3YN-2/-21, 2.5 kV/1 for H3YN- 4/-41, H3YN-4-Z/-41-Z), Emission AC Mains: EN 55011 Group 1 Class A, Emission Enclosure: EN 55011 Group 1 Class A, Immunity Burst: IEC 61000-4-4, Immunity Conducted Disturbance: IEC 61000-4-6, Immunity ESD: IEC 61000-4-2, Immunity RF-interference: IEC 61000-4-3, Immunity Surge: IEC 61000-4-5, Immunity Voltage Dip/Interruption: IEC 61000-4-11, UL 508, CSA C22.2 No. 14, Lloyd's, CCC: GB/T 14048.5
Input Voltage
24V DC
Electrical Connection
Socket
Contact Material
Gold Clad; Silver; Silver Alloy
Series
H3YN-4 DC24
Relay Operation
Solid State
Contact Rating (DC)
1.00 mA @ 1V
Current Rating
5 A
Delay Function
Flicker Off Start, Flicker On Start, Interval, On Delay
Contact Rating (AC)
3 A @ 250V (Resistive Load)
Coil Voltage
24V DC
Weight
50 g
Minimum Time Setting
0.1 sec
Compatible with Manufacturer Model Number
PY14, PY14-02, PYFZ-14, PYFZ-14-E
Maximum Time Setting
1 sec
Power Consumption
1.1 W
Electrical Operating Durability
200,000
Base Shape
Square
Maximum Operating Temperature
50 Degrees C
Mechanical Operating Durability
1,000,000
Number of Delay Functions
4
Minimum Operating Temperature
-10 Degrees C
Mounting Style
DIN Rail
Operating Time Accuracy
+/-1% +/-10 ms in a range of 1 s, +/-1% FS max
IP Rating
IP40
Adjustment Interface
Analog
Number of Pins
14
Compatible Manufacturer Part Number
PY14, PY14-02, PYFZ-14, PYFZ-14-E
Compatible Manufacturer Model Number
PY14, PY14-02, PYFZ-14, PYFZ-14-E
For Use With Mfr. Model Number
PY14, PY14-02, PYFZ-14, PYFZ-14-E
Compatible with Manufacturer Model No.
PY14, PY14-02, PYFZ-14, PYFZ-14-E
Compatible with Mfr. Model No.
PY14, PY14-02, PYFZ-14, PYFZ-14-E
For Use with Mfr Model Number
PY14, PY14-02, PYFZ-14, PYFZ-14-E
Compatible Pump Manufacturer Part Number
PY14, PY14-02, PYFZ-14, PYFZ-14-E
Compatible Mfr. Model Number
PY14, PY14-02, PYFZ-14, PYFZ-14-E

Description

Timer, Base Shape Square, Coil Voltage 24V DC, Contact Form 4PDT, Contact Rating (AC) 3 A @ 250V (Resistive Load), Contact Rating (DC) 1.00 mA @ 1V, Current Rating 5 A, Number of Delay Functions 4, Delay Function Flicker Off Start, Flicker On Start, Interval, On Delay, Electrical Connection Socket, IP Rating IP40, Input Voltage 24V DC, Minimum Time Setting 0.1 sec, Maximum Time Setting 1 sec, Number of Pins 14, Mounting Style DIN Rail, Adjustment Interface Analog, Body Depth 2.22 in
