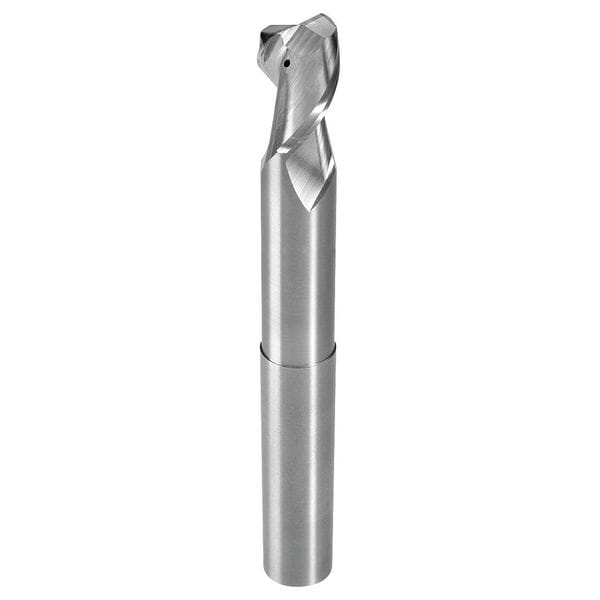

1" Two Flute Routing End Mill Square, 4-1/8" Neck

Mfr # AMC713902
Zoro # G5585833

797.99

Free Shipping & Returns

Key Features

Diameter

Application

For Aluminum

Single End/Double End

Single

Overall Length

7 in

Helix Angle

40 Degrees

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: AMC713902
Zoro #: G5585833
UPC #: 094713562375
Country of Origin: United States

Dimensions

Diameter: 1"
Overall Length: 7 in
Length of Cut: 1.25 in
Neck Dia.: 0.95 in
Neck Length: 4.125 in
Shank Dia.: 1 in
Dimension Type: Fractional Inch
Milling Dia.: 1 in
Milling Diameter: 1"
Wire Rope Length: 7 in
Length: 7 in

Details

Number of Flutes: 2
Application: For Aluminum
Single End/Double End: Single
Helix Angle: 40 Degrees
List Number: AFCNL-2
End Mill Material: Carbide
Type: Aluminum Rougher/Finisher, Long Length, Necked, Thru-Coolant
Cutting Type: Center
Finish: Bright (Uncoated)
End: Single
Cutting Direction: Right Hand
Grade: High Performance
End Style: Square
Item: Square End Mill
Shank Type - Machining: Straight
End Mill Style: Square
Material - Machining: Carbide
End Mill Cutting Type: Center Cutting
Measurement System: Inch
Cutting Direction - Machining: Right Hand
Drilling Tool Configuration: Individual
End Mill Application: Roughing/Finishing
Finish - Machining: Uncoated
Material Grade - Machining: High Performance
Primary Material Application ISO Code: N
Primary Material Application: Aluminum, Brass, Bronze, Copper, Magnesium
Secondary Material Application ISO Code: N
Coolant Fed: Non-Coolant Through
Secondary Material Application: Brass, Bronze, Copper
Flute Type: Spiral
Min. Helix Angle: 40 Degrees
Max. Helix Angle: 40 Degrees
Flute Spacing: Fixed

Description

Square End Mill, 1 in Milling Dia., Carbide, Uncoated, Non-Coolant Through, Straight, Length of Cut 1.25 in, Overall Length 7 in, Shank Dia. 1 in, Neck Dia. 0.95 in
