  9. Slim Type 1x 100TX (RJ-45) to 1x 100FX SFP Media Convertor

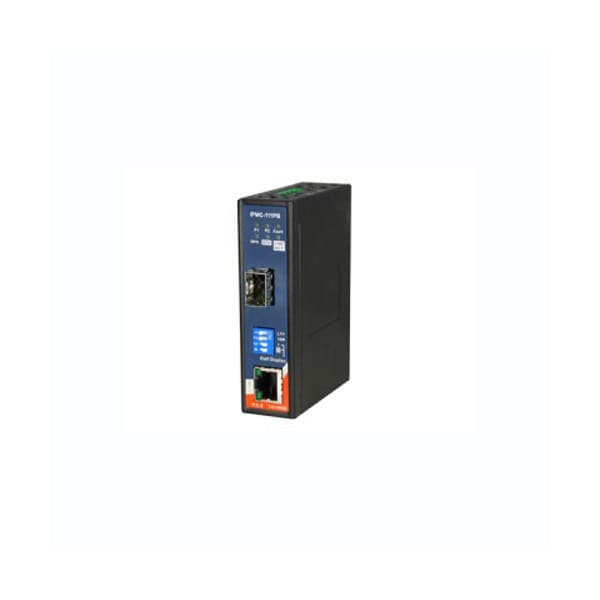

Oring Networking Slim Type 1x 100TX (RJ-45) to 1x 100FX SFP Media Convertor IPMC-111PB - main

Slim Type 1x 100TX (RJ-45) to 1x 100FX SFP Media Convertor

  • Mfr # IPMC-111PB

  • Zoro # G4408594

product price: $309.99
/ea
Free Shipping & Returns

Key Features

Input power
Dual 50~57 VDC voltage power inputs at 4-pin terminal block
Shock
IEC60068-2-27
10/100Base-T(X) RJ45 port indicator
Green for port Link/Act - (ON) Link up / (Blinking) Acting / (OFF) ; Link down; Amber for 100Mbps/10Mbps indicator - (ON) Working at 100Mbps / (OFF) ; Working at 10Mbps; Green for port duplex indicator - (ON) Full-Duplex / (OFF) Half-Duplex
EMS
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 ; (Surge), EN61000-4-6 (CS), EN61000-4-8; EN61000-4-11
Overload Current Protection
Present
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IPMC-111PB
Zoro #
G4408594
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Dimension (W x D x H)
26.1 (W) x 70 (D) x 95 (H)mm (1.03 x 2.76 x 3.74 inch)

Details

Input power
Dual 50~57 VDC voltage power inputs at 4-pin terminal block
Shock
IEC60068-2-27
10/100Base-T(X) RJ45 port indicator
Green for port Link/Act - (ON) Link up / (Blinking) Acting / (OFF) ; Link down; Amber for 100Mbps/10Mbps indicator - (ON) Working at 100Mbps / (OFF) ; Working at 10Mbps; Green for port duplex indicator - (ON) Full-Duplex / (OFF) Half-Duplex
EMS
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 ; (Surge), EN61000-4-6 (CS), EN61000-4-8; EN61000-4-11
Overload Current Protection
Present
Power indicator
Green : Power LED x 2 (ON : power input on-line / (OFF) power input ; off-line
Vibration
IEC60068-2-6
Safety
EN60950-1
Power consumption (Typ.)
31.2 Watts (P.S.E. output included)
100Base-FX fiber port indicator
Green for fiber port Link/Act - (ON) Link up / (Flash) Acting / ; (OFF) Link down; Green for fiber port duplex indicator - (ON) Full-Duplex / (OFF) ; Half-Duplex
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
1
Operating Humidity
5% to 95% Non-condensing
DIP-Switch setting
DIP-Switch 1 for LFP mode selection : (ON) enable / (OFF) disable; DIP-Switch 2 for Ethernet speed selection : (ON)10Mbps / (OFF) ; 10/100Mbps Auto-negotiate; DIP-Switch 3 for Ethernet full/half duplex selection : (ON) Half-duplex ; / (OFF) Full/Half-Duplex Auto-negotiate; DIP-Switch 4 for fiber full/half duplex selection : (ON) Half-Duplex / ; (OFF) Full-Duplex
Free Fall
IEC60068-2-32
Enclosure
IP-30
Ethernet Standards
IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX and 100Base-FX; IEEE 802.3x for Flow control; IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
Storage temperature
-40 to 85°C(-40 to 185°F)
EMI
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, ; EN50121-4)
LFP statue indicator
Amber LED - (ON) LFP function fail / (OFF) LFP function disable
Reverse Polarity Protection
Present
PoE indicator
Amber for P.S.E. indicator
Processing
Store-and-Forward
Operating temperature
-40 to 70°C (-40 to 158°F)

Description

Slim Type 1x 100TX (RJ-45) to 1x 100FX SFP Media Convertor
