  6. Carbide End Mill, 0.80mm dia, 0.80mm Cut L

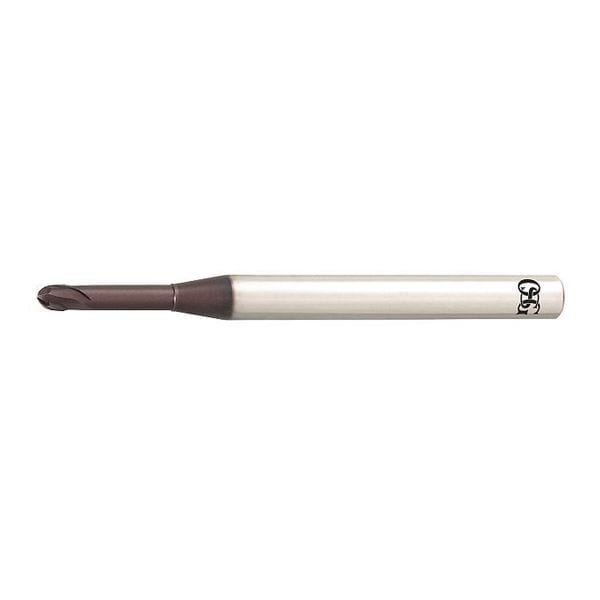

Osg Carbide End Mill, 0.80mm dia, 0.80mm Cut L HP419-0315 - main

Carbide End Mill, 0.80mm dia, 0.80mm Cut L

  • Mfr # HP419-0315

  • Zoro # G1710698

product price:  $44.79
/ea

Key Features

Dimension Type
Metric
Milling Diameter
0.80mm
End Mill Material
Carbide
Number of Flutes
2
Length of Cut
0.8 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HP419-0315
Zoro #
G1710698
UPC #
-
Country of Origin
United States

Dimensions

Dimension Type
Metric
Milling Diameter
0.80mm
Length of Cut
0.8 mm
Shank Dia.
6 mm
Overall Length
60 mm
Neck Length
4 mm
Milling Dia.
0.8 mm
Neck Dia.
0.75 mm

Details

End Mill Material
Carbide
Number of Flutes
2
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Grade
General Purpose
Helix Angle
30 Degrees
Super Alloy (S) Compatibility
No
Item
Ball End Mill
Cast Iron (K) Compatibility
Yes
End Mill Style
Ball Nose
List Number
HP419
Cutting Direction
Right Hand
Steel (P) Compatibility
Yes
End Mill Application
Roughing/Finishing
Hardened (H) Compatibility
Yes
Finish
TiAlN
Non Ferrous (N) Compatibility
No
Stainless (M) Compatibility
Yes
Shank Type
Straight
Series
HY-PRO(R) CARB
Coolant Fed
Non-Coolant Through
Primary Material Application
Cast Iron, Hardened Steel, Steel, Tool and Die Steel
Measurement System
Metric
Finish - Machining
TiAlN
Shank Type - Machining
Straight
Chip-Breaker
Chip-Breaker Not Included
Material Grade - Machining
General Purpose
Material - Machining
Carbide
Drilling Tool Configuration
Individual
Primary Material Application ISO Code
H, K, P
Flute Type
Spiral

Description

Ball End Mill, 0.8 mm Milling Dia., Carbide, TiAlN, Non-Coolant Through
