  6. Carbide End Mill, 12mm dia., 18.00mm Cut
Osg Carbide End Mill, 12mm dia., 18.00mm Cut 3092123 - main

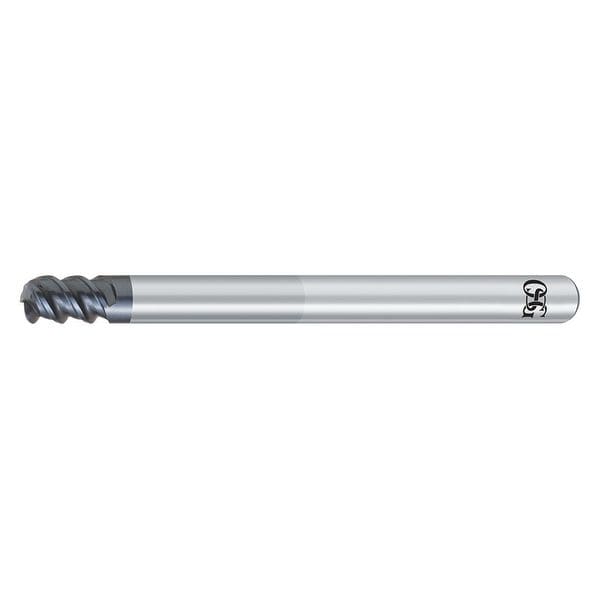

Carbide End Mill, 12mm dia., 18.00mm Cut

  • Mfr # 3092123

  • Zoro # G1744587

product price:  $739.99
/ea
Free Shipping & Returns

Key Features

Measurement System
Metric
Milling Diameter
12.00mm
Overall Length
160 mm
Number of Flutes
3
End Mill Style
Corner-Radius
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3092123
Zoro #
G1744587
UPC #
-
Country of Origin
Japan

Dimensions

Milling Diameter
12.00mm
Overall Length
160 mm
Length of Cut
18 mm
Corner Radius
2 mm
Dimension Type
Metric
Neck Dia.
11.7 mm
Shank Dia.
12 mm
Neck Length
108 mm
Milling Dia.
12 mm

Details

Measurement System
Metric
Number of Flutes
3
End Mill Style
Corner-Radius
Finish
WXS
End Mill Cutting Type
Center Cutting
Super Alloy (S) Compatibility
No
List Number
9576
Hardened (H) Compatibility
Yes
End Mill Application
Roughing/Finishing
Item
Corner Radius End Mill
Grade
General Purpose
Stainless (M) Compatibility
Yes
Steel (P) Compatibility
Yes
Single End/Double End
Single
Helix Angle
55 Degrees
Shank Type
End Mill
Cutting Direction
Right Hand
Non Ferrous (N) Compatibility
No
End Mill Material
Carbide
Cast Iron (K) Compatibility
Yes
Series
EXOPRO PHX
Cutting Direction - Machining
Right Hand
Finish - Machining
WXS
Shank Type - Machining
Straight
Drilling Tool Configuration
Individual
Material - Machining
Carbide
Material Grade - Machining
General Purpose
Primary Material Application ISO Code
H, P
Primary Material Application
Hardened Steel, Steel, Tool and Die Steel
Flute Type
Spiral
Secondary Material Application
Cast Iron, Stainless Steel
Secondary Material Application ISO Code
K, M
Flute Spacing
Fixed
Max. Helix Angle
55 Degrees

Description

Corner Radius End Mill, 12 mm Milling Dia., Carbide, WXS, Straight, Metric, 2 mm, 18 mm, 160 mm
