  11. Carbide End Mill, 12mm dia., 18.00mm Cut

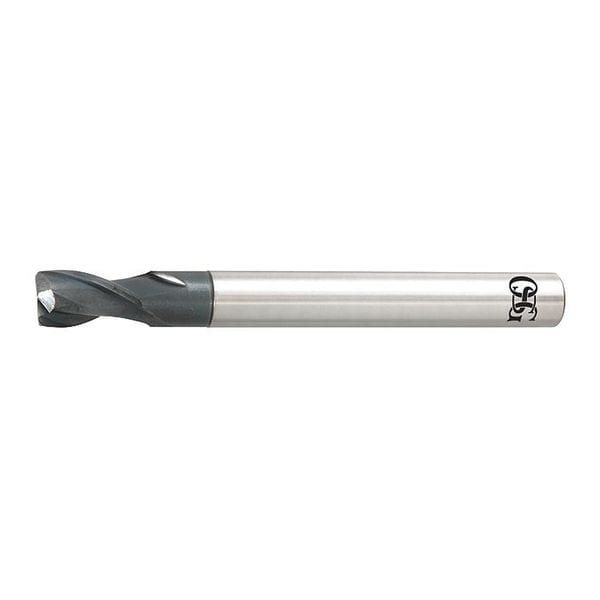

Osg Carbide End Mill, 12mm dia., 18.00mm Cut HP433-4723 - main

Carbide End Mill, 12mm dia., 18.00mm Cut

  • Mfr # HP433-4723

  • Zoro # G1709045

product price: $108.99
/ea
Free Shipping & Returns

Key Features

Measurement System
Metric
Overall Length
110 mm
Milling Diameter
12.00mm
Number of Flutes
2
End Mill Style
Corner-Radius
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HP433-4723
Zoro #
G1709045
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
110 mm
Milling Diameter
12.00mm
Length of Cut
18 mm
Shank Dia.
12 mm
Milling Dia.
12 mm
Neck Dia.
11 mm
Dimension Type
Metric
Neck Length
50.00mm
Corner Radius
2 mm

Details

Measurement System
Metric
Number of Flutes
2
End Mill Style
Corner-Radius
Finish
TiAlN
End Mill Cutting Type
Center Cutting
Non Ferrous (N) Compatibility
No
End Mill Application
Roughing/Finishing
Super Alloy (S) Compatibility
No
Cast Iron (K) Compatibility
Yes
Stainless (M) Compatibility
Yes
Shank Type
End Mill
Single End/Double End
Single
Grade
General Purpose
Hardened (H) Compatibility
Yes
End Mill Material
Carbide
Helix Angle
35 Degrees
Item
Corner Radius End Mill
Steel (P) Compatibility
Yes
Cutting Direction
Right Hand
List Number
HP433
Series
HY-PRO(R) CARB
Material - Machining
Carbide
Finish - Machining
TiAlN
Shank Type - Machining
Straight
Cutting Direction - Machining
Right Hand
Drilling Tool Configuration
Individual
Material Grade - Machining
General Purpose
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Tool and Die Steel
Primary Material Application ISO Code
K, M, P, S
Max. Helix Angle
35 Degrees

Description

Corner Radius End Mill, 12 mm Milling Dia., Carbide, TiAlN, Straight, Metric, 2 mm, 18 mm, 110 mm
