  11. Carbide End Mill, 1/4 in. dia., 3/8 in Cut

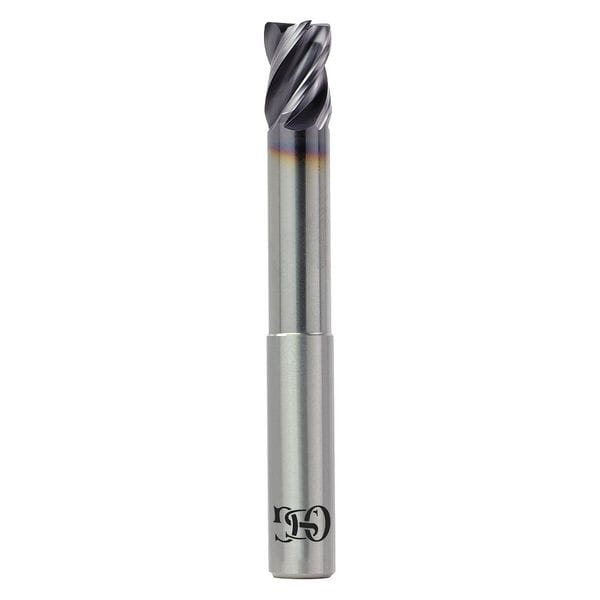

Osg Carbide End Mill, 1/4 in. dia., 3/8 in Cut VG446-2500 - main

Carbide End Mill, 1/4 in. dia., 3/8 in Cut

  • Mfr # VG446-2500

  • Zoro # G1713376

product price: $61.19
/ea

Key Features

Measurement System
Inch
Overall Length
4 in
Milling Diameter
1/4"
Number of Flutes
4
End Mill Style
Corner-Radius
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VG446-2500
Zoro #
G1713376
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
4 in
Milling Diameter
1/4"
Length of Cut
0.375 in
Shank Dia.
1/4 in
Dimension Type
Fractional Inch
Neck Dia.
0.235 in
Corner Radius
0.015 in
Neck Length
1.25 in
Milling Dia.
0.25 in

Details

Measurement System
Inch
Number of Flutes
4
End Mill Style
Corner-Radius
Finish
TiAlN
End Mill Cutting Type
Center Cutting
End Mill Material
Carbide
Steel (P) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
Yes
Grade
General Purpose
Super Alloy (S) Compatibility
No
Helix Angle
35 Degrees
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
Yes
Item
Corner Radius End Mill
List Number
VG446
Cutting Direction
Right Hand
Shank Type
End Mill
End Mill Application
Roughing/Finishing
Single End/Double End
Single
Series
HY-PRO(R) CARB VGX
Cutting Direction - Machining
Right Hand
Drilling Tool Configuration
Individual
Finish - Machining
TiAlN
Material - Machining
Carbide
Shank Type - Machining
Straight
Material Grade - Machining
General Purpose
Chamfer Angle
45 Degrees
Primary Material Application
Cast Iron, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium, Tool and Die Steel
Primary Material Application ISO Code
H, K, M, P, S
Flute Type
Spiral
Max. Helix Angle
35 Degrees
Flute Spacing
Variable

Description

Corner Radius End Mill, 0.25 in Milling Dia., Carbide, TiAlN, Straight, Inch, 0.015 in, 0.375 in, 4 in
