Shop OSG

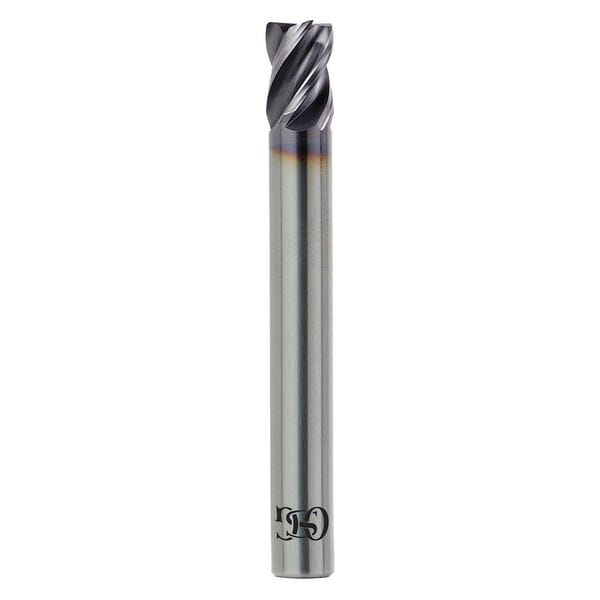

Carbide End Mill, 5/8 in. dia., 3/4 in Cut

  • Mfr # VG464-6251
  • Zoro # G1713050

product price:
$
203.99
/ea
Free Shipping & Returns

Key Features

Measurement System
Inch
Milling Diameter
5/8"
Number of Flutes
4
End Mill Style
Corner-Chamfer
Finish
TiAlN
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
VG464-6251
Zoro #
G1713050
UPC #
-
Country of Origin
United States
Measurement System
Inch
Number of Flutes
4
End Mill Style
Corner-Chamfer
Finish
TiAlN
End Mill Cutting Type
Center Cutting
List Number
VG464
Cast Iron (K) Compatibility
Yes
End Mill Application
Roughing/Finishing
Hardened (H) Compatibility
Yes
End Mill Material
Carbide
Shank Type
End Mill
Stainless (M) Compatibility
Yes
Item
Corner Chamfer End Mill
Helix Angle
35 Degrees
Single End/Double End
Single
Super Alloy (S) Compatibility
No
Cutting Direction
Right Hand
Non Ferrous (N) Compatibility
No
Grade
General Purpose
Steel (P) Compatibility
Yes
Series
HY-PRO(R) CARB VGX
Drilling Tool Configuration
Individual
Material - Machining
Carbide
Shank Type - Machining
Weldon Flat
Finish - Machining
TiAlN
Cutting Direction - Machining
Right Hand
Material Grade - Machining
High Performance
Primary Material Application ISO Code
H, K, M, P, S
Primary Material Application
Cast Iron, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium, Tool and Die Steel
Flute Type
Spiral
Flute Spacing
Variable
Max. Helix Angle
35 Degrees

Dimensions

Overall Length
6 in
Milling Diameter
5/8"
Length of Cut
3/4 in
Milling Dia.
0.625 in
Corner Radius
0.020"
Shank Dia.
5/8 in
Dimension Type
Fractional Inch
Chamfer Width
0.02 in
Wire Rope Length
6 in
Length
6 in

Description

Corner Chamfer End Mill, 0.625 in Milling Dia., Carbide, TiAlN, Weldon Flat, Inch, Not Applicable, 0.02 in, 3/4 in
