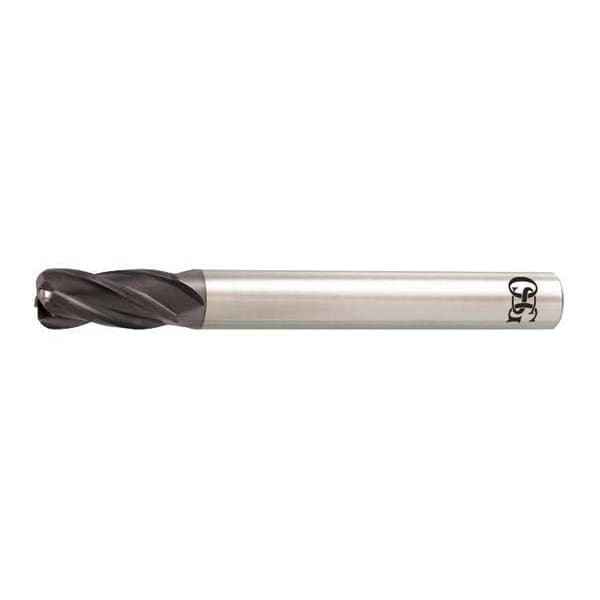

Osg Carbide End Mill, 6.00mm dia, 13.00mm Cut HP434-2364 - main

Carbide End Mill, 6.00mm dia, 13.00mm Cut

  • Mfr # HP434-2364

  • Zoro # G1709447

product price: $41.39
/ea

Key Features

Measurement System
Metric
Overall Length
80 mm
Milling Diameter
6.00mm
Number of Flutes
4
End Mill Style
Corner-Radius
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HP434-2364
Zoro #
G1709447
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
80 mm
Milling Diameter
6.00mm
Length of Cut
13 mm
Dimension Type
Metric
Shank Dia.
6 mm
Corner Radius
2 mm
Milling Dia.
6 mm

Details

Measurement System
Metric
Number of Flutes
4
End Mill Style
Corner-Radius
Finish
TiAlN
End Mill Cutting Type
Center Cutting
End Mill Application
Roughing/Finishing
List Number
HP434
Grade
General Purpose
Shank Type
End Mill
Single End/Double End
Single
Super Alloy (S) Compatibility
No
Cutting Direction
Right Hand
Item
Corner Radius End Mill
Helix Angle
35 Degrees
Stainless (M) Compatibility
Yes
Steel (P) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Non Ferrous (N) Compatibility
No
End Mill Material
Carbide
Hardened (H) Compatibility
Yes
Series
HY-PRO(R) CARB
Drilling Tool Configuration
Individual
Finish - Machining
TiAlN
Shank Type - Machining
Straight
Cutting Direction - Machining
Right Hand
Material - Machining
Carbide
Material Grade - Machining
General Purpose
Primary Material Application
Cast Iron, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium, Tool and Die Steel
Primary Material Application ISO Code
H, K, M, P, S
Flute Type
Spiral
Flute Spacing
Fixed
Max. Helix Angle
35 Degrees

Description

Corner Radius End Mill, 6 mm Milling Dia., Carbide, TiAlN, Straight, Metric, 2 mm, 13 mm, 80 mm
