  11. Carbide End Mill, 8.00mm dia, 12.00mm Cut

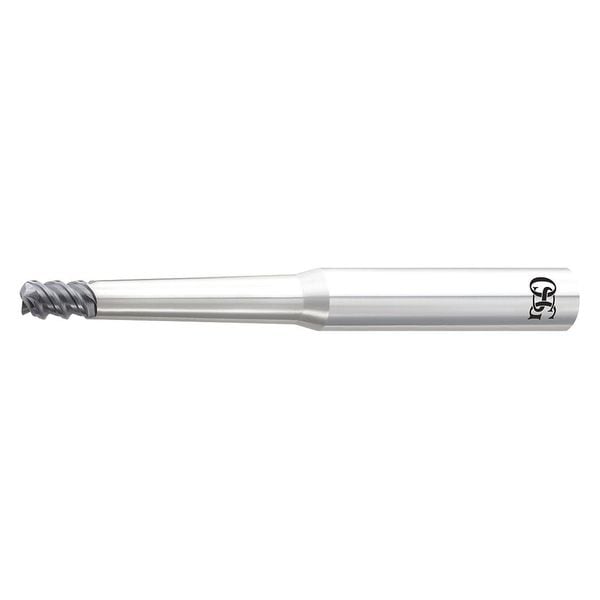

Osg Carbide End Mill, 8.00mm dia, 12.00mm Cut 3097853 - main

Carbide End Mill, 8.00mm dia, 12.00mm Cut

  • Mfr # 3097853

  • Zoro # G1744018

product price: $532.99
/ea
Free Shipping & Returns

Key Features

Measurement System
Metric
Milling Diameter
8.00mm
Overall Length
150 mm
Number of Flutes
3
End Mill Style
Corner-Radius
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3097853
Zoro #
G1744018
UPC #
-
Country of Origin
Japan

Dimensions

Milling Diameter
8.00mm
Overall Length
150 mm
Length of Cut
12 mm
Shank Dia.
12 mm
Neck Length
82.4 mm
Dimension Type
Metric
Milling Dia.
8 mm
Corner Radius
2 mm
Neck Dia.
12 mm

Details

Measurement System
Metric
Number of Flutes
3
End Mill Style
Corner-Radius
Finish
WXS
End Mill Cutting Type
Center Cutting
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
Yes
Non Ferrous (N) Compatibility
No
End Mill Material
Carbide
Hardened (H) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
End Mill Application
Roughing/Finishing
Single End/Double End
Single
Helix Angle
55 Degrees
Stainless (M) Compatibility
Yes
Grade
General Purpose
Item
Corner Radius End Mill
Shank Type
End Mill
List Number
9580
Cutting Direction
Right Hand
Series
EXOPRO PHX
Drilling Tool Configuration
Individual
Material - Machining
Carbide
Shank Type - Machining
Straight
Cutting Direction - Machining
Right Hand
Finish - Machining
WXS
Material Grade - Machining
General Purpose
Primary Material Application
Hardened Steel, Steel, Tool and Die Steel
Primary Material Application ISO Code
H, P
Flute Type
Spiral
Flute Spacing
Fixed
Secondary Material Application ISO Code
K, M
Max. Helix Angle
55 Degrees
Secondary Material Application
Cast Iron, Stainless Steel

Description

Corner Radius End Mill, 8 mm Milling Dia., Carbide, WXS, Straight, Metric, 2 mm, 12 mm, 150 mm
