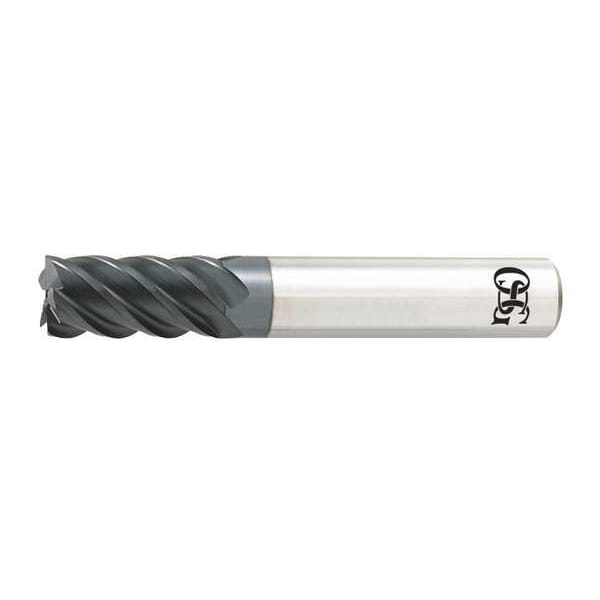

Carbide End Mill, 8.00mm dia, 21.00mm Cut

Mfr # HP455-3150
Zoro # G1711510

45.35

/ea

Key Features

Measurement System

Metric

Milling Diameter

8.00mm

Overall Length

64 mm

Number of Flutes

End Mill Style

Square

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: HP455-3150
Zoro #: G1711510
UPC #: -
Country of Origin: United States

Dimensions

Milling Diameter: 8.00mm
Overall Length: 64 mm
Length of Cut: 21 mm
Shank Dia.: 8 mm
Milling Dia.: 8 mm
Dimension Type: Metric
Wire Rope Length: 64 mm
Length: 64 mm

Details

Measurement System: Metric
Number of Flutes: 5
End Mill Style: Square
Finish: TiAlN
End Mill Cutting Type: Center Cutting
Shank Type: End Mill
Helix Angle: 45 Degrees
Steel (P) Compatibility: Yes
Hardened (H) Compatibility: No
Item: Square End Mill
Single End/Double End: Single
End Mill Application: Roughing/Finishing
End Mill Material: Carbide
Grade: General Purpose
Cast Iron (K) Compatibility: Yes
List Number: HP455
Super Alloy (S) Compatibility: No
Stainless (M) Compatibility: Yes
Cutting Direction: Right Hand
Non Ferrous (N) Compatibility: No
Series: HY-PRO(R) CARB
Cutting Direction - Machining: Right Hand
Drilling Tool Configuration: Individual
Shank Type - Machining: Straight
Material - Machining: Carbide
Material Grade - Machining: General Purpose
Finish - Machining: TiAlN
Primary Material Application ISO Code: S
Primary Material Application: Nickel, Titanium
Flute Type: Spiral
Flute Spacing: Fixed
Coolant Fed: Non-Coolant Through
Max. Helix Angle: 45 Degrees

Description

Square End Mill, 8 mm Milling Dia., Carbide, TiAlN, Non-Coolant Through, Straight, Length of Cut 21 mm, Overall Length 64 mm, Shank Dia. 8 mm, Neck Dia. Not Applicable
