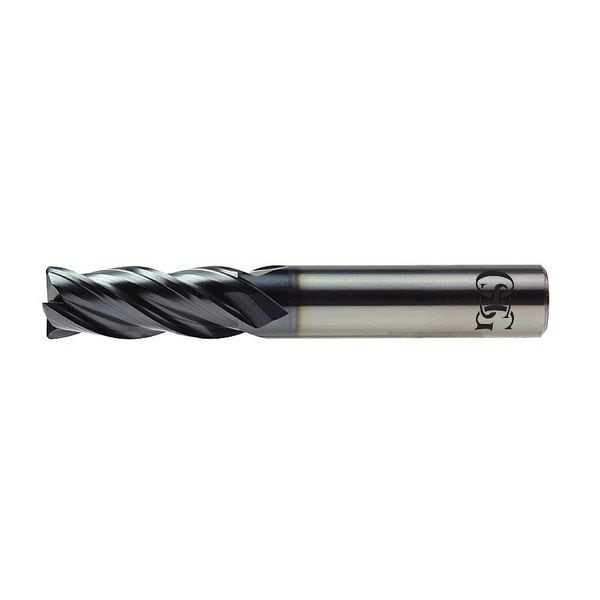

Osg Carbide End Mill, VG436, 1/4 D, 3/4 Cut L VG436-2501 - main

Carbide End Mill, VG436, 1/4 D, 3/4 Cut L

  • Mfr # VG436-2501

  • Zoro # G5598521

product price:  $25.89
/ea

Key Features

Number of Flutes
4
Overall Length
2 1/2 in
Shank Dia.
1/4 in
Length of Cut
3/4 in
End Mill Style
Corner-Chamfer
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VG436-2501
Zoro #
G5598521
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
2 1/2 in
Shank Dia.
1/4 in
Length of Cut
3/4 in
Milling Diameter
1/4"
Milling Dia.
0.25 in
Dimension Type
Fractional Inch
Chamfer Width
0.016 in
Corner Radius
0.0160"

Details

Item
Corner Chamfer End Mill
Number of Flutes
4
End Mill Style
Corner-Chamfer
Single End/Double End
Single
Shank Type
Straight
End Mill Application
Finishing
Cutting Direction
Right Hand
End Mill Cutting Type
Center Cutting
List Number
VG436
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
Yes
End Mill Material
Carbide
Stainless (M) Compatibility
Yes
Helix Angle
35 Degrees
Super Alloy (S) Compatibility
Yes
Finish
TiAlN
Grade
High Performance
Steel (P) Compatibility
Yes
Hardened (H) Compatibility
Yes
Series
HY-PRO(R) CARB VGX
Drilling Tool Configuration
Individual
Shank Type - Machining
Straight
Material - Machining
Carbide
Finish - Machining
TiAlN
Measurement System
Inch
Cutting Direction - Machining
Right Hand
Material Grade - Machining
High Performance
Primary Material Application ISO Code
H, K, M, P, S
Primary Material Application
Cast Iron, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium, Tool and Die Steel
Flute Type
Spiral
Flute Spacing
Variable
Max. Helix Angle
35 Degrees

Description

Corner Chamfer End Mill, 0.25 in Milling Dia., Carbide, TiAlN, Straight, Inch, Not Applicable, 0.016 in, 3/4 in
