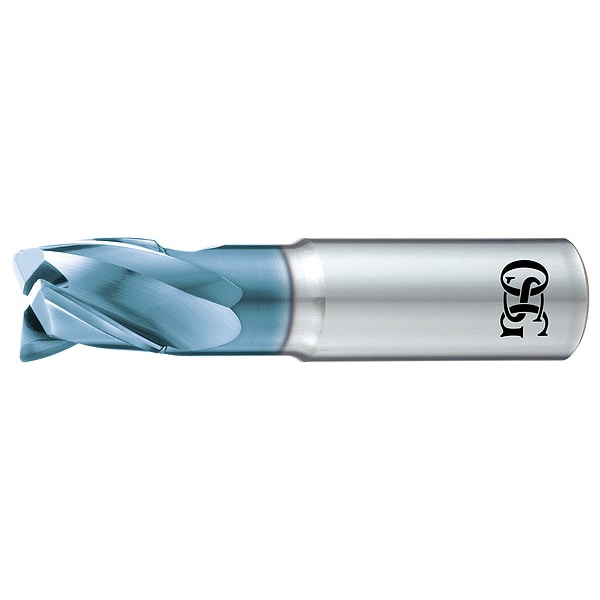

Osg Corner Radius End Mill, 1 in, Carbide 28743500 - main

Corner Radius End Mill, 1 in, Carbide

  • Mfr # 28743500

  • Zoro # G0509477

product price: $617.99
/ea
Free Shipping & Returns

Key Features

Dimension Type
Fractional Inch
Milling Diameter
1"
End Mill Material
Carbide
Number of Flutes
3
Single End/Double End
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
28743500
Zoro #
G0509477
UPC #
-
Country of Origin
Japan

Dimensions

Dimension Type
Fractional Inch
Corner Radius
0.09 in
Milling Diameter
1"
Shank Dia.
1 in
Overall Length
4 in
Milling Dia.
1 in
Neck Length
2.205 in
Length of Cut
1.523 in
Neck Dia.
0.921 in

Details

End Mill Material
Carbide
Number of Flutes
3
Single End/Double End
Single
End Mill Cutting Type
Non-Center Cutting
Finish
Uncoated
Grade
Micro Grain
Flute Type
Spiral
Number of Coolant Holes
0
Finish - Machining
DLC
End Mill Application
Finishing
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Drilling Tool Configuration
Individual
Item
Corner Radius End Mill
Workpiece Compatibility
Cast Iron (K), Hardened (H), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Material Applications
Aluminum
Shank Type
Straight
Cutting Direction - Machining
Right Hand
End Mill Style
Corner-Radius
Spiral Direction
Right Hand
For Material Hardness
35 HRC
Material Grade - Machining
C2 Micrograin
Measurement System
Inch
Cutting Direction
Right Hand
Material - Machining
Carbide
List Number
2874
Helix Angle
30 Degrees
Series
EXOCARB AERO DLC
Primary Material Application ISO Code
N
Primary Material Application
Aluminum
Flute Spacing
Fixed
Max. Helix Angle
30 Degrees
Secondary Material Application ISO Code
N
Secondary Material Application
Aluminum, Brass, Bronze, Copper

Description

Corner Radius End Mill, 1 in Milling Dia., Carbide, DLC, Non-Coolant Through, Straight, Inch, 0.09 in, 1.523 in, 4 in
