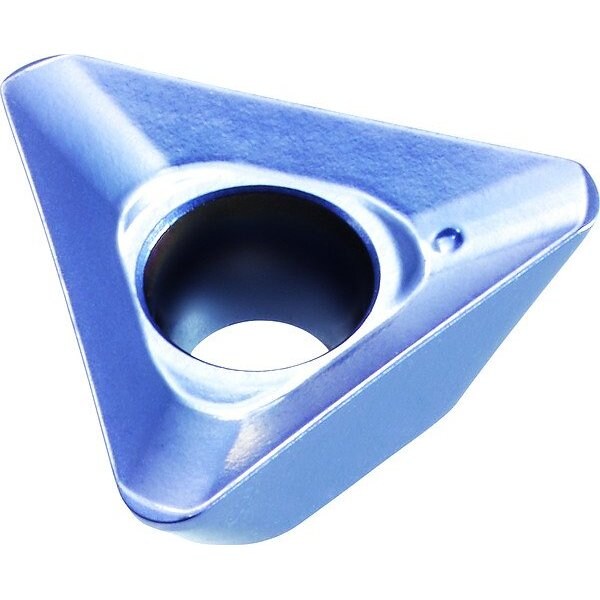

Drilling Indexable Insert

  • Mfr # 7813205

  • Zoro # G501779921

product price:  $25.59
/ea

Key Features

For Use With
Indexable Centering and Chamfering Cutter
Mounting Style
Screw Clamp
Insert Style
TPKT
Chip-Breaker
Yes
Insert Size
110308
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7813205
Zoro #
G501779921
UPC #
-
Country of Origin
Luxembourg

Dimensions

Insert Size
110308
Thickness
1/8 in
Corner Radius
0.80 mm

Details

Item
Drilling Indexable Insert
For Use With
Indexable Centering and Chamfering Cutter
Mounting Style
Screw Clamp
Insert Style
TPKT
Chip-Breaker
Yes
Inscribed Circle
1/4 in
Rake
Negative
Primary Material Application
Hardened Steel, Heat-Resistant Alloy, Stainless Steel
Measurement System
Fractional Inch
Primary Material Application ISO Code
H, M, S
Features
Highly Rigid Negative Chamfer Tip
Secondary Material Application
Nonferrous Metal, Steel
Secondary Material Application ISO Code
N, P
Insert Holding Type
Screw Clamp
Clearance Angle
11 Degrees
Number of Cutting Edges
3
Chip-Breaker Code
DM
For Toolholder
PLDS11R002SS16
Manufacturer Grade
XP2040
Shape
Triangle
ANSI Code
TPKT110308ER
Cutting Application
Spot Drilling; Countersinking; Chamfering

Description

Drilling Indexable Insert, Inscribed Circle 1/4 in, Negative
