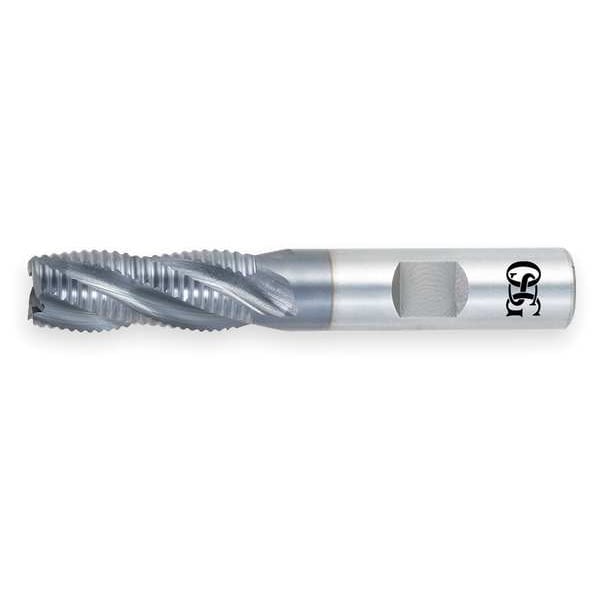

End Mill, Roughing, Co, TiAlN, 1 In, 5 FL, Sq

Mfr # 4560911
Zoro # G2407937

221.99

/ea

Free Shipping & Returns

Key Features

End Mill Style

Square

Number of Flutes

Overall Length

6 1/2 in

Shank Dia.

1 in

Finish - Machining

TiAlN

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 4560911
Zoro #: G2407937
UPC #: -
Country of Origin: Brazil

Dimensions

Overall Length: 6 1/2 in
Shank Dia.: 1 in
Length of Cut: 4 in
Milling Dia.: 1 in
Milling Diameter: 1"
Corner Radius: 0.000"
Dimension Type: Fractional Inch
Wire Rope Length: 6 1/2 in
Length: 6 1/2 in

Details

Item: Roughing End Mill
End Mill Style: Square
Number of Flutes: 5
Finish - Machining: TiAlN
Helix Angle: 30 Degrees
Single End/Double End: Single
End Mill Cutting Type: Non-Center Cutting
End Mill Material: Cobalt
List Number: 455
Super Alloy (S) Compatibility: Yes
Cutting Direction: Right Hand
Non Ferrous (N) Compatibility: Yes
Grade: General Purpose
Finish: TiAlN
Hardened (H) Compatibility: Yes
Cast Iron (K) Compatibility: Yes
Stainless (M) Compatibility: Yes
Steel (P) Compatibility: Yes
End Mill Application: Roughing
Material - Machining: Cobalt
Drilling Tool Configuration: Individual
Shank Type - Machining: Weldon Flat
Cutting Direction - Machining: Right Hand
Measurement System: Inch
Material Grade - Machining: General Purpose
Primary Material Application ISO Code: H, M
Primary Material Application: Hardened Steel, Stainless Steel
Flute Spacing: Fixed
Max. Helix Angle: 30 Degrees
Pitch: Fine
Coolant Fed: Non-Coolant Through
Secondary Material Application: Aluminum, Brass, Cast Iron, Copper, Steel, Titanium, Tool and Die Steel
Secondary Material Application ISO Code: K, N, P, S
Flute Type: Spiral

Description

Roughing End Mill, 1 in Milling Dia., Cobalt, TiAlN, Non-Coolant Through, Weldon Flat, Length of Cut 4 in, Overall Length 6 1/2 in, Shank Dia. 1 in, Neck Dia. Not Applicable
