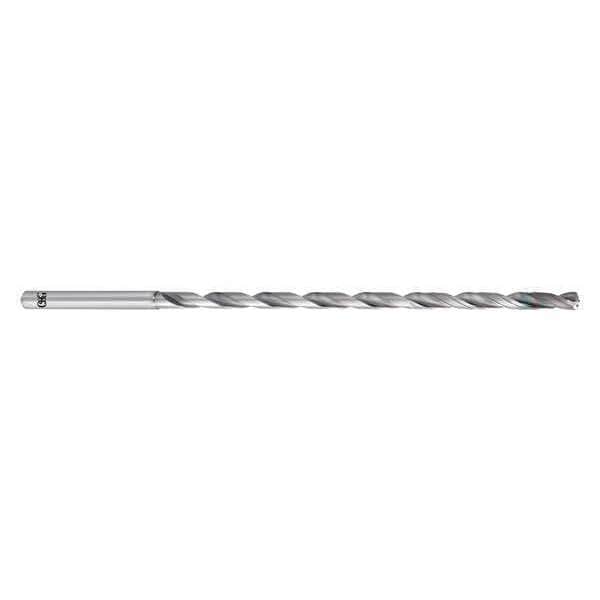

Extra Long Drill Bit, 290mm L, 10mm dia.
- Mfr # 8714940
- Zoro # G0619521
product price:Â
$
758.99
/ea
Free Shipping & Returns
Key Features
Overall Length
290 mm
Drill Bit Point Angle
140 Degrees
Material - Machining
Carbide
Finish - Machining
EgiAs
Number of Flutes
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 8714940
- Zoro #
- G0619521
- UPC #
- -
- Country of Origin
- Japan
- Item
- Extra Long Drill Bit
- Drill Bit Point Angle
- 140 Degrees
- Material - Machining
- Carbide
- Finish - Machining
- EgiAs
- Number of Flutes
- 2
- Shank Type - Machining
- Straight
- Decimal Equivalent
- 0.3701
- Flute Type
- Spiral
- Cutting Direction
- Right Hand
- List Number
- 6540
- Standards
- Not Rated
- Coolant Fed
- Coolant Through
- Series
- A-Drill
- Secondary Material Application
- Aluminum, Hardened Steel, Stainless Steel, Titanium
- Drill Bit Point Type
- X Thinning Point
- Number of Coolant Holes
- 2
- Material Grade - Machining
- High Performance
- Measurement System
- Metric
- Sheeter Drill
- No
- Secondary Material Application ISO Code
- H, M, N, S
- Primary Material Application ISO Code
- H, K, M, P
- Primary Material Application
- Cast Iron, Hardened Steel, Stainless Steel, Steel, Tool and Die Steel
Dimensions
- Drill Bit Size
- 9.4 mm
- Overall Length
- 290 mm
- Shank Dia.
- 10 mm
- Flute Length
- 220 mm
- Depth:Dia. Ratio
- 20xD
- Maximum Drilling Depth
- 220.00 mm
- Drill Diameter Tolerance
- -0.014 mm/-0.028 mm
- Drill Length Class
- Extended-Length
- Shank Length
- 70 mm
- Wire Rope Length
- 290 mm
- Length
- 290 mm
Description
Extra Long Drill Bit, Drill Bit Size 9.4 mm, Drill Bit Point Angle 140 Degrees , X Thinning Point, Carbide, EgiAs, Material Grade - Machining High Performance, Maximum Drilling Depth 220.00 mm, Metric, 20xD
