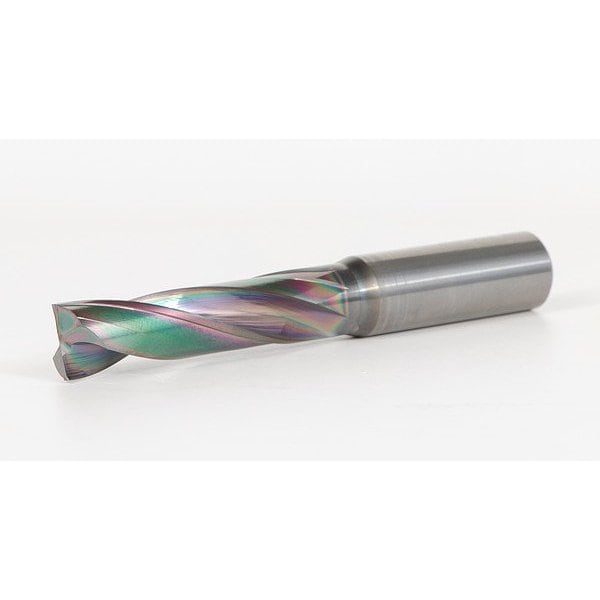

Flat Bottom Drill Bit, Size 0.283

  • Mfr # 3330720

  • Zoro # G809799171

product price:
$
152.99
/ea
Free Shipping & Returns

Key Features

Material - Machining
Carbide
Finish - Machining
EgiAs
Measurement System
Metric
Number of Flutes
2
Overall Length
75 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3330720
Zoro #
G809799171
UPC #
-
Country of Origin
Japan

Dimensions

Overall Length
75 mm
Shank Dia.
6 mm
Drill Bit Size
7.2 mm
Flute Length
34 mm
Depth:Dia. Ratio
2xD
Drill Diameter Tolerance
+0.000 mm/-0.022 mm
Shank Length
32 mm
Drill Length Class
Screw-Machine Length
Wire Rope Length
75 mm
Length
75 mm

Details

Material - Machining
Carbide
Finish - Machining
EgiAs
Measurement System
Metric
Number of Flutes
2
Helix Angle
20 Degrees
Cutting Direction
Right Hand
List Number
5700
Item
Flat Bottom Drill Bit
Flute Type
Spiral
Decimal Equivalent
0.2834 in
Drill Bit Point Angle
180 Degrees
Primary Material Application
Hardened Steel, Cast Iron, Tool and Die Steel
Drill Bit Point Type
Flat-Bottom
Primary Material Application ISO Code
H, K, P
Secondary Material Application
Aluminum, Hardened Steel, Stainless Steel
Coolant Fed
Non-Coolant Through
Secondary Material Application ISO Code
H, M, N
Standards
Not Rated
Shank Type - Machining
Straight

Description

Flat Bottom Drill Bit, Drill Bit Size 7.2 mm, 180 Degrees Drill Bit Point Angle, Flat-Bottom, Carbide, EgiAs
