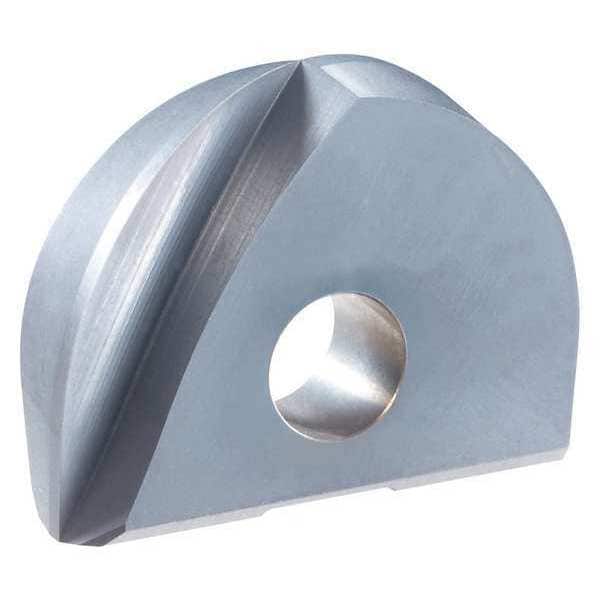

Osg Milling Insert, Parallelogram, SH, XP3310 52101034 - main

Milling Insert, Parallelogram, SH, XP3310

  • Mfr # 52101034

  • Zoro # G7767956

product price: $91.79
/ea
Free Shipping & Returns

Key Features

Cast Iron (K) Compatibility
Yes
Grade
XP3310
Insert Material
Carbide
Insert Style
PFB
Insert Thickness
5.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
52101034
Zoro #
G7767956
UPC #
-
Country of Origin
Japan

Dimensions

Insert Thickness
5.00mm
Nose Radius
0.375"
Insert Size
0750
Corner Radius
3/8 in
Radius
180 Degrees
Cutting Edge Length
3/4 in
Width
15.00mm
Thickness
5.00 mm

Details

Cast Iron (K) Compatibility
Yes
Item
Ball Nose Milling Insert
Grade
XP3310
Insert Material
Carbide
Insert Style
PFB
Insert Application
Finishing
Non Ferrous (N) Compatibility
No
ANSI Number
PFB0750-SH
Super Alloy (S) Compatibility
No
For Use With
Indexable Ballnose End Mills
Hardened (H) Compatibility
Yes
Insert Shape
Parallelogram
Mounting Style
Screw
Workpiece Compatibility
Cast Iron (K), Hardened (H)
Inscribed Circle
0.750 in
Coating
SiC
Steel (P) Compatibility
No
No. of Edges
1
ISO Number
PFB0750-SH
Chip-Breaker
Yes
Cutting Direction
Right Hand
Stainless (M) Compatibility
No
Series
78PFB
Measurement System
Fractional Inch
Material - Machining
Carbide
Number of Cutting Edges
1
Cutting Application
Finishing
Primary Material Application ISO Code
H, K, P
Chip-Breaker Code
SH
For Toolholder
PFB-R100SF6, PFB-R120SF6, PFB-R160SF8, PFB-R200SF10, PFB-R250SF12, PFB-R300SF16
Features
Composed of a Tough High-Strength Carbide Material with a Chipping Resistant and Wear Resistant Coating
Primary Material Application
Cast Iron, Hardened Steel, Steel
Coating Process
PVD
ANSI Code
PFB0750-SH
Shape
Ball Nose
Manufacturer Grade
XP3310

Description

Ball Nose Milling Insert, Inscribed Circle 0.750 in, PFB0750-SH, SH
