Shop OSG

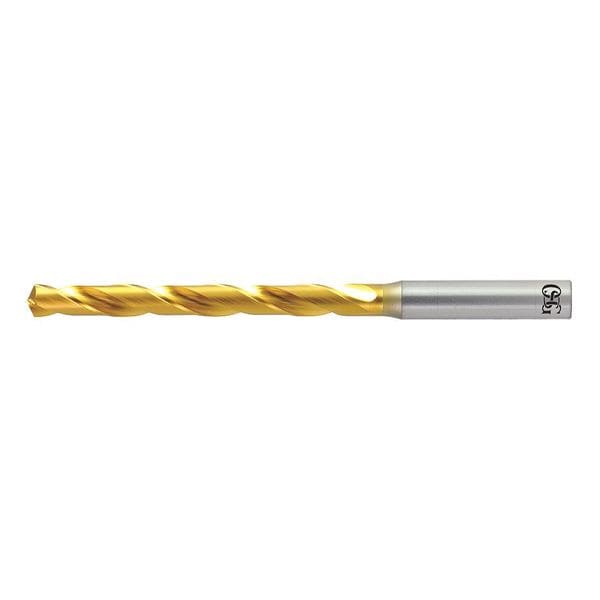

P HSS 130 Deg. Jobber Length Drill Bit

  • Mfr # 15323005

  • Zoro # G9239553

product price:  $65.29
/ea

Key Features

Overall Length
130 mm
Drill Bit Point Angle
130 Degrees
Drill Bit Size
P
Number of Flutes
2
Shank Dia.
3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
15323005
Zoro #
G9239553
UPC #
-
Country of Origin
Japan

Dimensions

Overall Length
130 mm
Drill Bit Size
P
Shank Dia.
3/8 in
Flute Length
84 mm
Depth:Dia. Ratio
5xD
Drill Bit Dimension Type
Letter
Shank Length
46 mm
Drill Diameter Tolerance
+0.000 mm/-0.022 mm
Drill Length Class
Jobber-Length
Maximum Drilling Depth
3 5/16 in
Wire Rope Length
130 mm

Details

Item
Jobber Length Drill Bit
Drill Bit Point Angle
130 Degrees
Number of Flutes
2
Material - Machining
Cobalt High Speed Steel
Cutting Direction
Right Hand
Finish - Machining
TiN
Shank Type - Machining
Straight
Decimal Equivalent
0.3230
Drill Bit Grouping
Drill Bit
List Number
1500
Standards
Not Rated
Application
For Aluminum : Casting, Cast Iron, Low Carbon Steel : 1010, 1018, Medium Carbon Steel : 1035, 1045, High Carbon Steel : 1065, Alloy Steels : 4140, 4340, Die Steels : 20 HrC, Stainless Steels : 17-4PH, Hardened Steels : 35 HrC
Coolant Fed
Non-Coolant Through
Helix Angle
30 Degrees
Primary Material Application
Steel, Tool and Die Steel
Flute Type
Spiral
Primary Material Application ISO Code
P
Measurement System
Letter
Secondary Material Application ISO Code
H, K, M, N, P
Drill Bit Point Type
R Thinning Point
Sheeter Drill
No
Secondary Material Application
Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel
Series
1500
Spiral Direction
Right Hand
Material Grade - Machining
High Performance
Helix Angle - Maximum
30 Degrees

Description

Jobber Length Drill Bit, Drill Bit Size P, Drill Bit Point Angle 130 Degrees , Cobalt High Speed Steel, TiN, Decimal Equivalent 0.3230, Letter, Drill Bit Point Type R Thinning Point, Non-Coolant Through
