  11. Pipe Tap, 1/2"-14, Taper, 4 Flutes, NPT

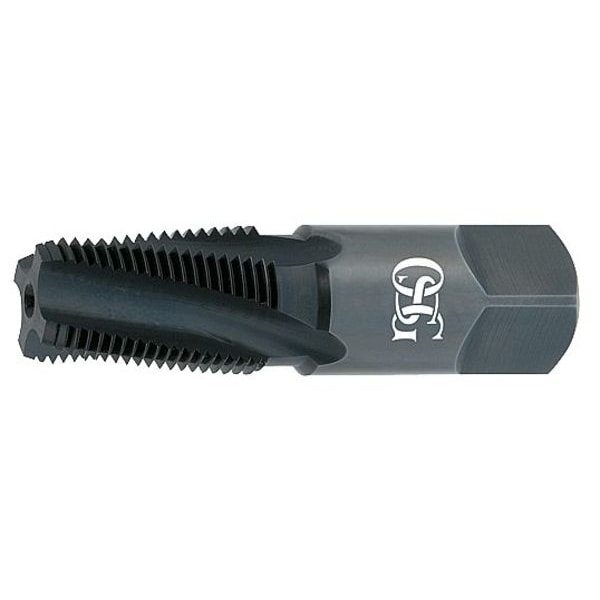

Osg Pipe Tap, 1/2"-14, Taper, 4 Flutes, NPT 1252100 - main

Pipe Tap, 1/2"-14, Taper, 4 Flutes, NPT

  • Mfr # 1252100

  • Zoro # G9241696

product price: $85.21
/ea
Free Shipping & Returns

Key Features

Tap Thread Size
1/2"-14
Tap Chamfer
Taper
Number of Flutes
4
Tap Thread Type
NPT
List Number
S125
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1252100
Zoro #
G9241696
UPC #
-
Country of Origin
Mexico

Dimensions

Tap Thread Size
1/2"-14
Pitch Diameter Limit
Not Rated
Tap Dimension Type
Pipe
Tap Size
1/2"
Shank Dia.
0.515"
Overall Length
3-1/8"
Thread Length
1-3/8"
75% Thread Drill Size
0.7031 in
Tap Length Standard
ANSI
Drill Bit Size
11/16 in, 45/64 in
Shank Length
1 47/64 in
Square Size
0.5140 in
Thread Size
1/2"-14
Size
1/2"

Details

Item
Pipe Tap
Tap Chamfer
Taper
Number of Flutes
4
Tap Thread Type
NPT
List Number
S125
Tap Grouping
Tap
Tap Style
Pipe
Number of Pieces
1
Tap Material
High Speed Steel
Standards
ANSI
Thread Direction
Right Hand
Tap Finish
Bright
Cutting Direction - Machining
Right Hand
Series
S125
Extended Neck
Yes
Thread Standard
NPT
Material Grade - Machining
S125
Max. Projection
0.4680 in
Helix Angle
15 Degrees
Coolant Fed
Non-Coolant Through
Tap Shank Standard
ANSI
Secondary Material Application ISO Code
K, N, P
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Threads per Inch
14
Measurement System
Fractional Inch
Primary Material Application
All Materials
Primary Material Application ISO Code
H, K, M, N, O, P, S
Spiral Direction
Neutral

Description

Pipe and Conduit Thread Tap, Thread Size 1/2 In.-14, ANPT, NPT, Overall Length 3 1/8 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 1 3/8 in, 75 Percent Thread Drill Size 0.7031 in, Thread Limit Not Applicable, Class of Fit Not Applicable, Number of Flutes 4
