  11. Pipe Tap, 1/4"-18, Taper, 4 Flutes, NPT

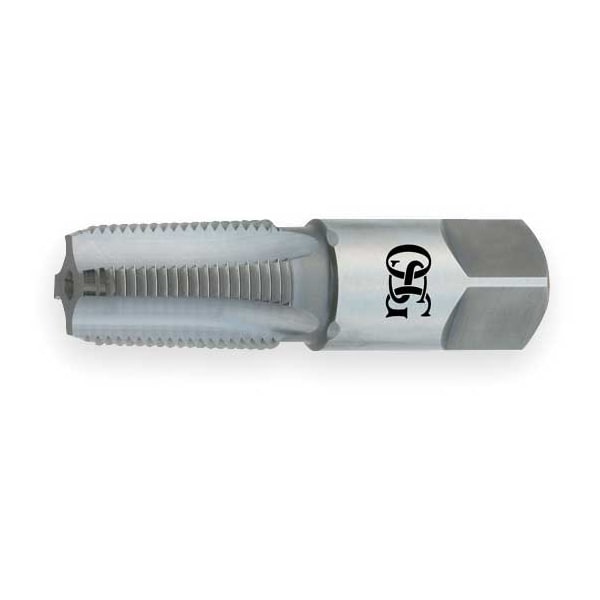

Osg Pipe Tap, 1/4"-18, Taper, 4 Flutes, NPT 1312800 - main

Pipe Tap, 1/4"-18, Taper, 4 Flutes, NPT

  • Mfr # 1312800

  • Zoro # G1004902

product price: $35.15
/ea

Key Features

Tap Thread Size
1/4"-18
Tap Chamfer
Taper
Number of Flutes
4
Tap Thread Type
NPT
Pitch Diameter Limit
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1312800
Zoro #
G1004902
UPC #
-
Country of Origin
Mexico

Dimensions

Tap Thread Size
1/4"-18
Pitch Diameter Limit
Not Rated
Thread Length
1-1/16"
Tap Dimension Type
Pipe
Shank Dia.
0.421"
Overall Length
2-7/16"
Tap Size
1/4"
Drill Bit Size
27/64 in, 7/16 in
Shank Length
1 9/64 in
Tap Length Standard
ANSI
75% Thread Drill Size
0.4375 in
Square Size
0.4200 in
Thread Size
1/4"-18
Size
1/4"

Details

Item
Pipe Tap
Tap Chamfer
Taper
Number of Flutes
4
Tap Thread Type
NPT
Thread Direction
Right Hand
Tap Finish
Bright
List Number
118
Tap Grouping
Tap
Tap Material
High Speed Steel
Number of Pieces
1
Standards
ANSI
Tap Style
Pipe
Cutting Direction - Machining
Right Hand
Series
118
Measurement System
Fractional Inch
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Threads per Inch
18
Primary Material Application ISO Code
H, K, M, N, O, P, S
Material Grade - Machining
118
Tap Shank Standard
ANSI
Max. Projection
0.4590 in
Spiral Direction
Neutral
Extended Neck
Yes
Coolant Fed
Non-Coolant Through
Primary Material Application
All Materials
Thread Standard
NPTF
Secondary Material Application ISO Code
K, N, P
Helix Angle
0 Degrees

Description

Pipe and Conduit Thread Tap, Thread Size 1/4 In.-18, NPTF, Overall Length 2 7/16 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 1 1/16 in, 75 Percent Thread Drill Size 0.4375 in, Thread Limit Not Applicable, Class of Fit Not Applicable, Number of Flutes 4
