Shop OSG

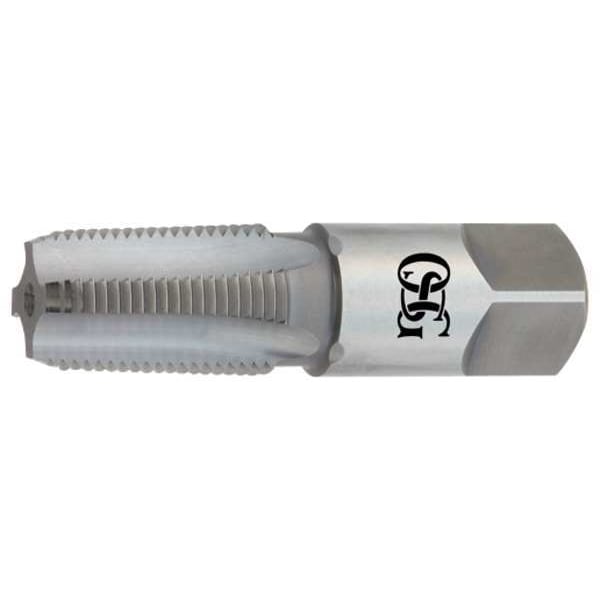

Pipe Tap, 1/8"-27, Taper, 4 Flutes, NPTF

  • Mfr # 1312708

  • Zoro # G9312116

product price:  $34.19
/ea

Key Features

Tap Thread Size
1/8"-27
Tap Chamfer
Taper
Number of Flutes
4
Tap Thread Type
NPTF
Tap Grouping
Tap
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1312708
Zoro #
G9312116
UPC #
-
Country of Origin
Mexico

Dimensions

Tap Thread Size
1/8"-27
Tap Dimension Type
Pipe
Thread Length
3/4"
Pitch Diameter Limit
Not Rated
Overall Length
2-1/8"
Tap Size
1/8"
Shank Dia.
0.313"
Square Size
0.2330 in
Tap Length Standard
ANSI
75% Thread Drill Size
Q
Thread Size
1/8"-27
Shank Length
1 11/64 in
Drill Bit Size
21/64 in, Q
Size
1/8"
Square Width
0.23 in
Square Length
0.23 in
Shank Diameter
5/16 in

Details

Item
Pipe Tap
Tap Chamfer
Taper
Number of Flutes
4
Tap Thread Type
NPTF
Tap Grouping
Tap
Tap Style
Pipe
Thread Direction
Right Hand
Tap Material
High Speed Steel
Tap Finish
TiCN
Number of Pieces
1
Standards
ANSI
List Number
118
Cutting Direction - Machining
Right Hand
Series
118
Spiral Direction
Neutral
Thread Standard
NPTF
Tap Shank Standard
ANSI
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Threads per Inch
27
Extended Neck
Yes
Measurement System
Fractional Inch
Material Grade - Machining
118
Coolant Fed
Non-Coolant Through
Primary Material Application ISO Code
K, N, P
Helix Angle
0 Degrees
Max. Projection
0.3120 in
Maximum Projection
5/16 in

Description

Pipe and Conduit Thread Tap, Thread Size 1/8 In.-27, NPTF, Overall Length 2 1/8 in, High Speed Steel, TiCN, Right Hand, Thread Length 3/4 in, 75 Percent Thread Drill Size Q, Number of Flutes 4
