  11. Screw Machine Drill Bit, 12.00 mm Size, 120 Degrees Point Angle, High Speed Steel, TiAlN Finish

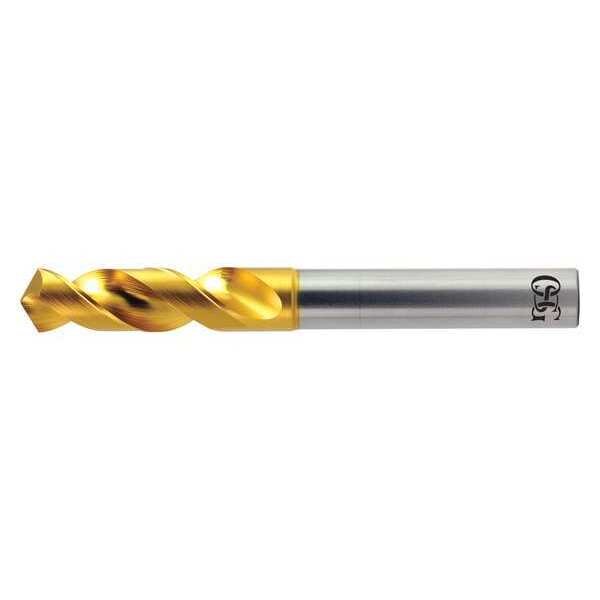

Osg Screw Machine Drill Bit, 12.00 mm Size, 120 Degrees Point Angle, High Speed Steel, TiAlN Finish 6162011 - main

Screw Machine Drill Bit, 12.00 mm Size, 120 Degrees Point Angle, High Speed Steel, TiAlN Finish

  • Mfr # 6162011

  • Zoro # G0589473

product price: $125.99
/ea
Free Shipping & Returns

Key Features

Drill Bit Size
12 mm
Overall Length
108 mm
Flute Length
51 mm
Number of Flutes
2
Material - Machining
High Speed Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6162011
Zoro #
G0589473
UPC #
-
Country of Origin
Japan

Dimensions

Drill Bit Size
12 mm
Overall Length
108 mm
Flute Length
51 mm
Depth:Dia. Ratio
3xD
Shank Dia.
12 mm
Shank Length
57 mm
Maximum Drilling Depth
51.00 mm
Drill Diameter Tolerance
+0.000 mm/-0.027 mm
Drill Length Class
Screw-Machine Length

Details

Item
Screw Machine Drill Bit
Number of Flutes
2
Material - Machining
High Speed Steel
Finish - Machining
TiAlN
Drill Bit Point Angle
120 Degrees
Cutting Direction
Right Hand
List Number
1100
Grade
High Performance
Flute Type
Spiral
Decimal Equivalent
0.4724
Standards
Not Rated
Series
EX-SUS-Gold
Coolant Fed
Non-Coolant Through
Primary Material Application
Aluminum, Stainless Steel, Steel
Shank Type - Machining
Straight
Material Grade - Machining
High Performance
Secondary Material Application
Stainless Steel, Steel
Drill Bit Point Type
4 Facet Point
Primary Material Application ISO Code
M, N, P
Sheeter Drill
No
Measurement System
Metric
Secondary Material Application ISO Code
M, P

Description

Screw Machine Drill Bit, Drill Bit Size 12 mm, Drill Bit Point Angle 120 Degrees , 4 Facet Point, High Speed Steel, TiAlN, Non-Coolant Through, Cutting Direction Right Hand, Decimal Equivalent 0.4724
